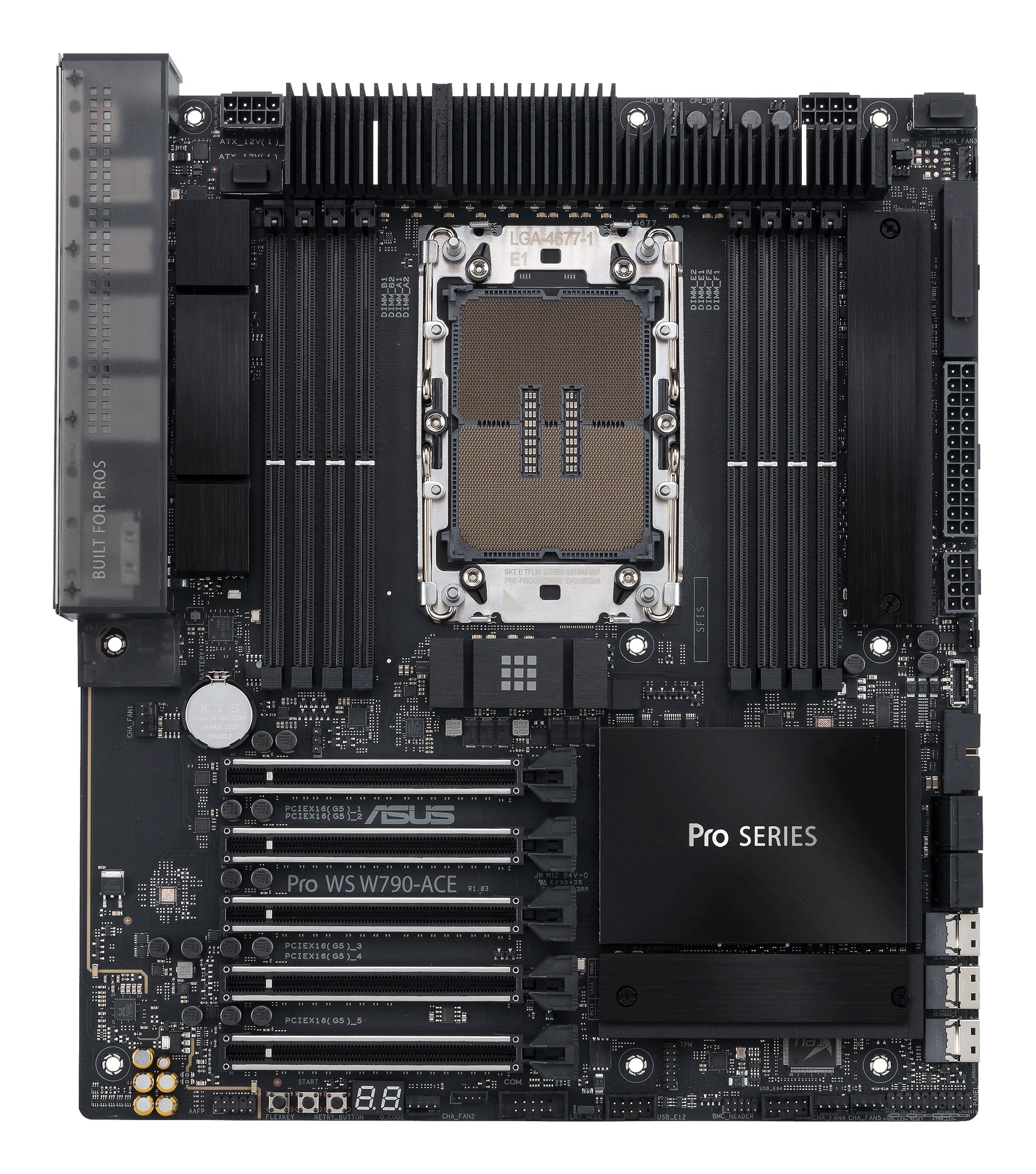

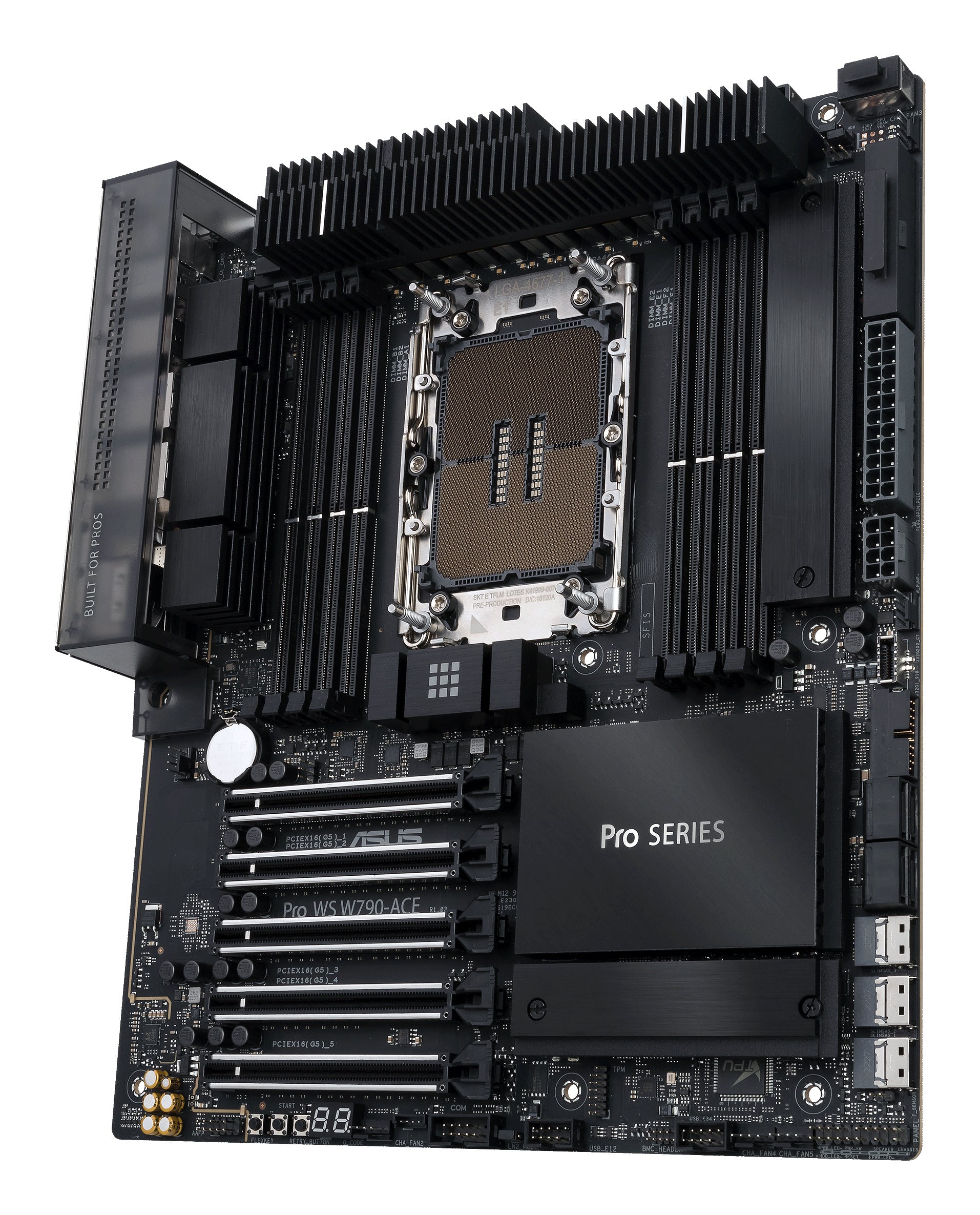

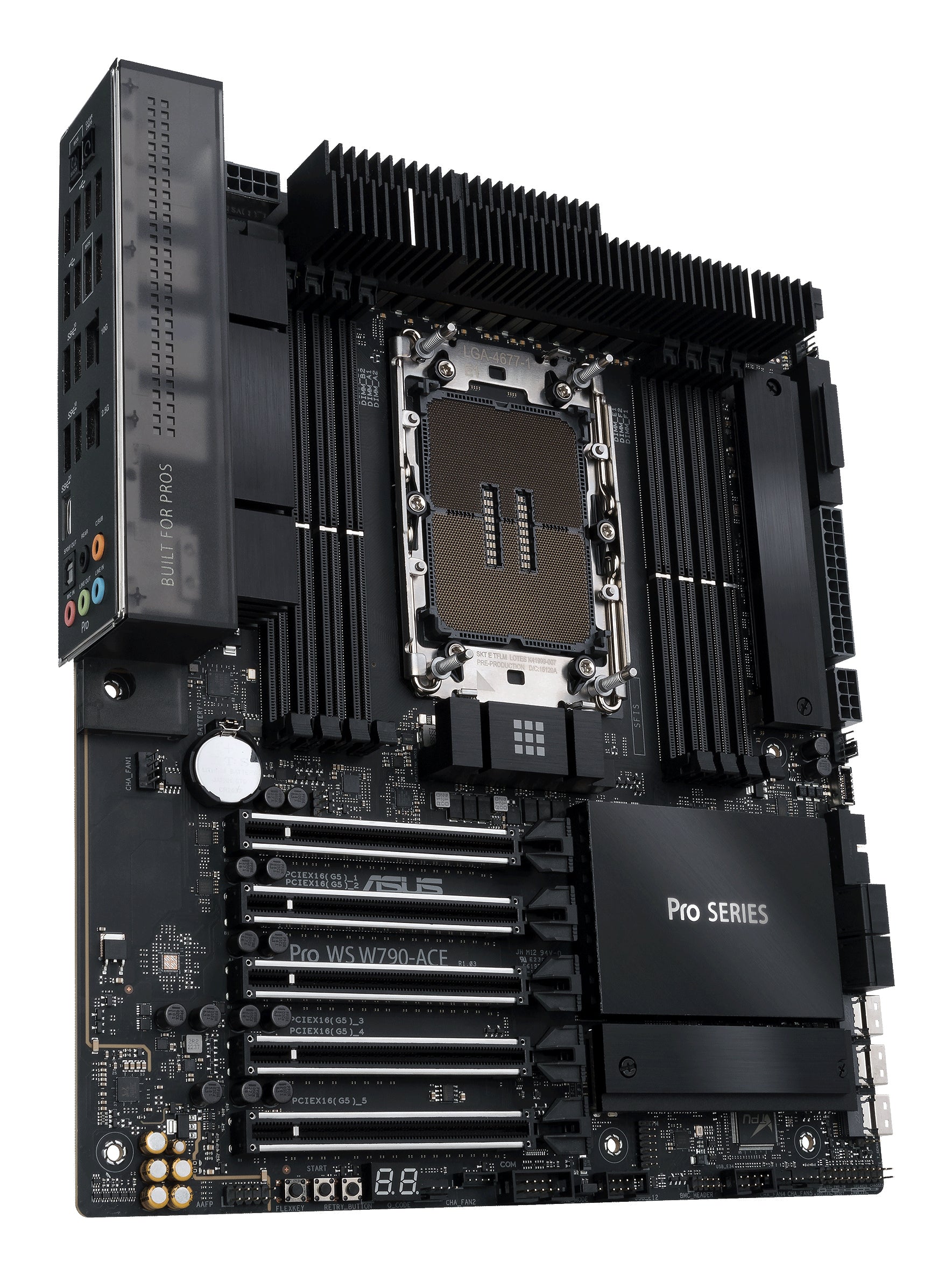

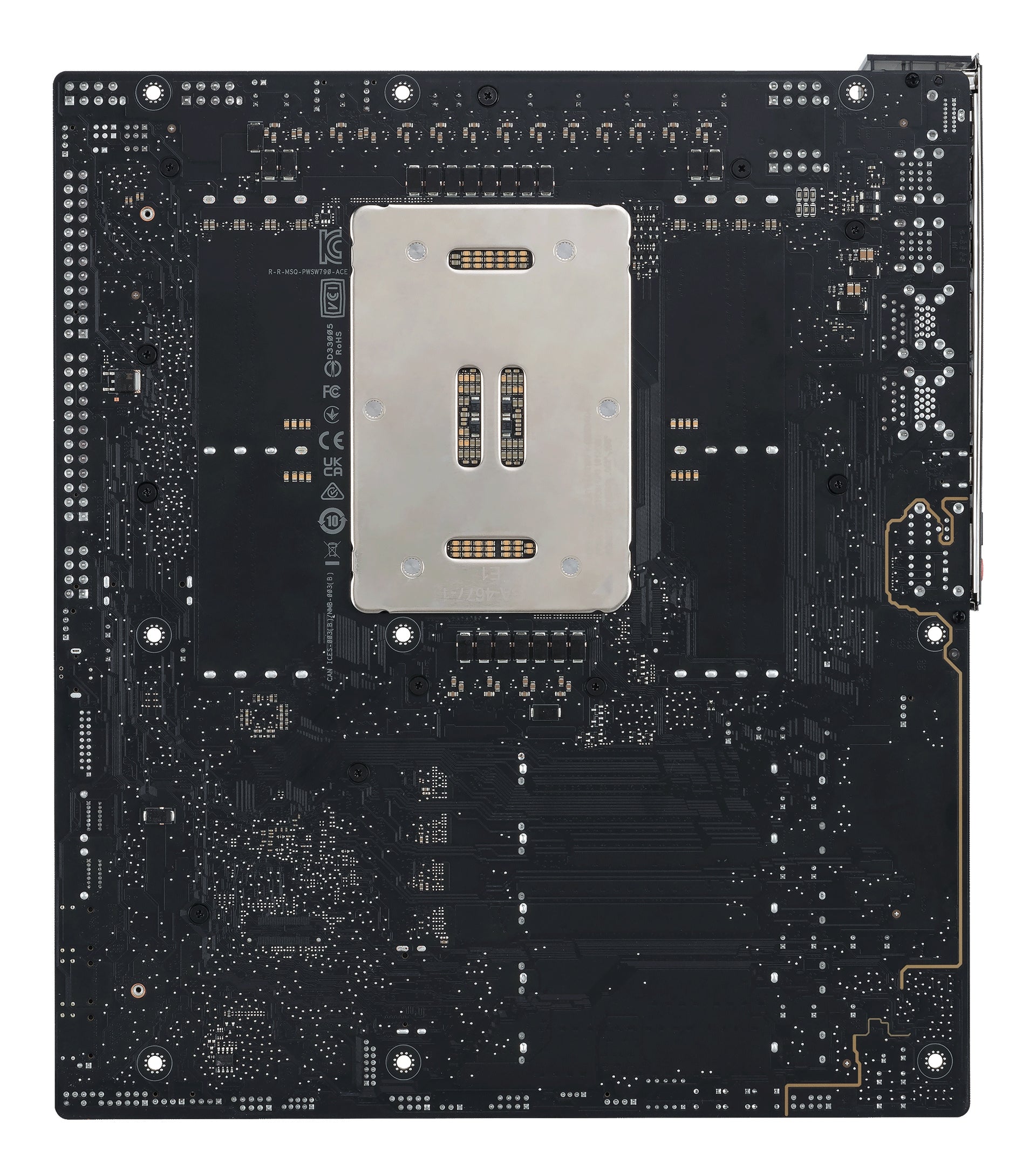

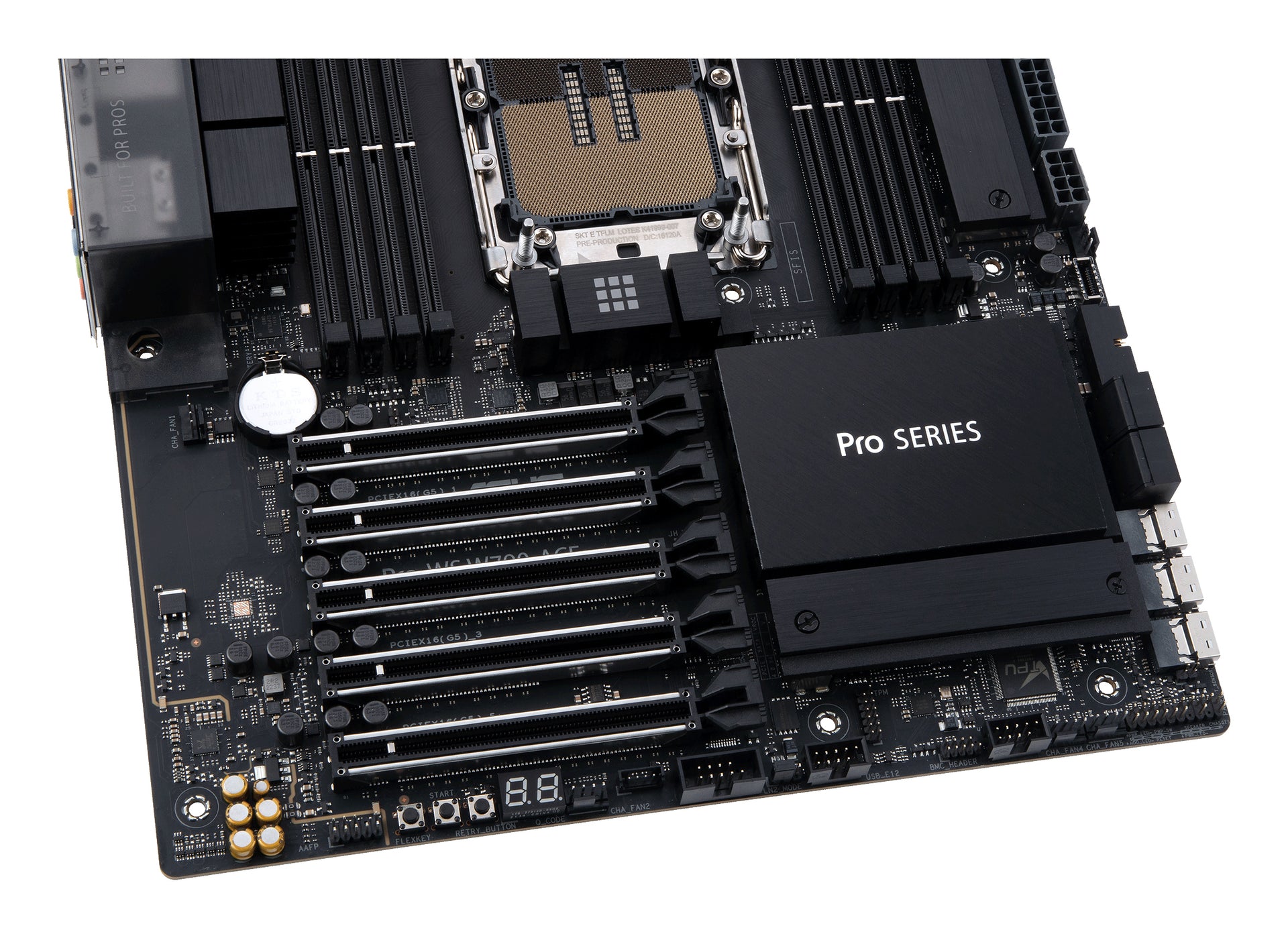

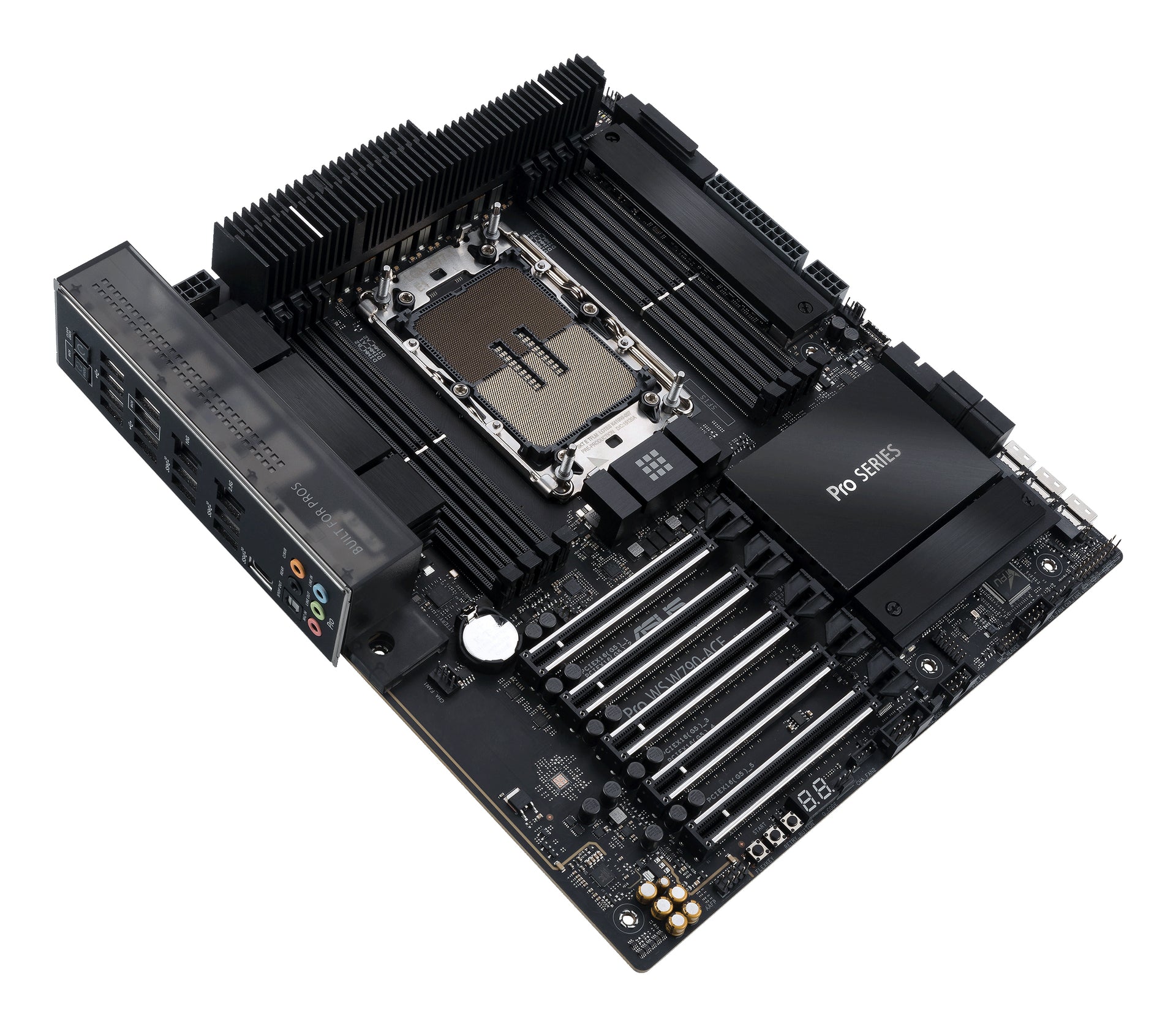

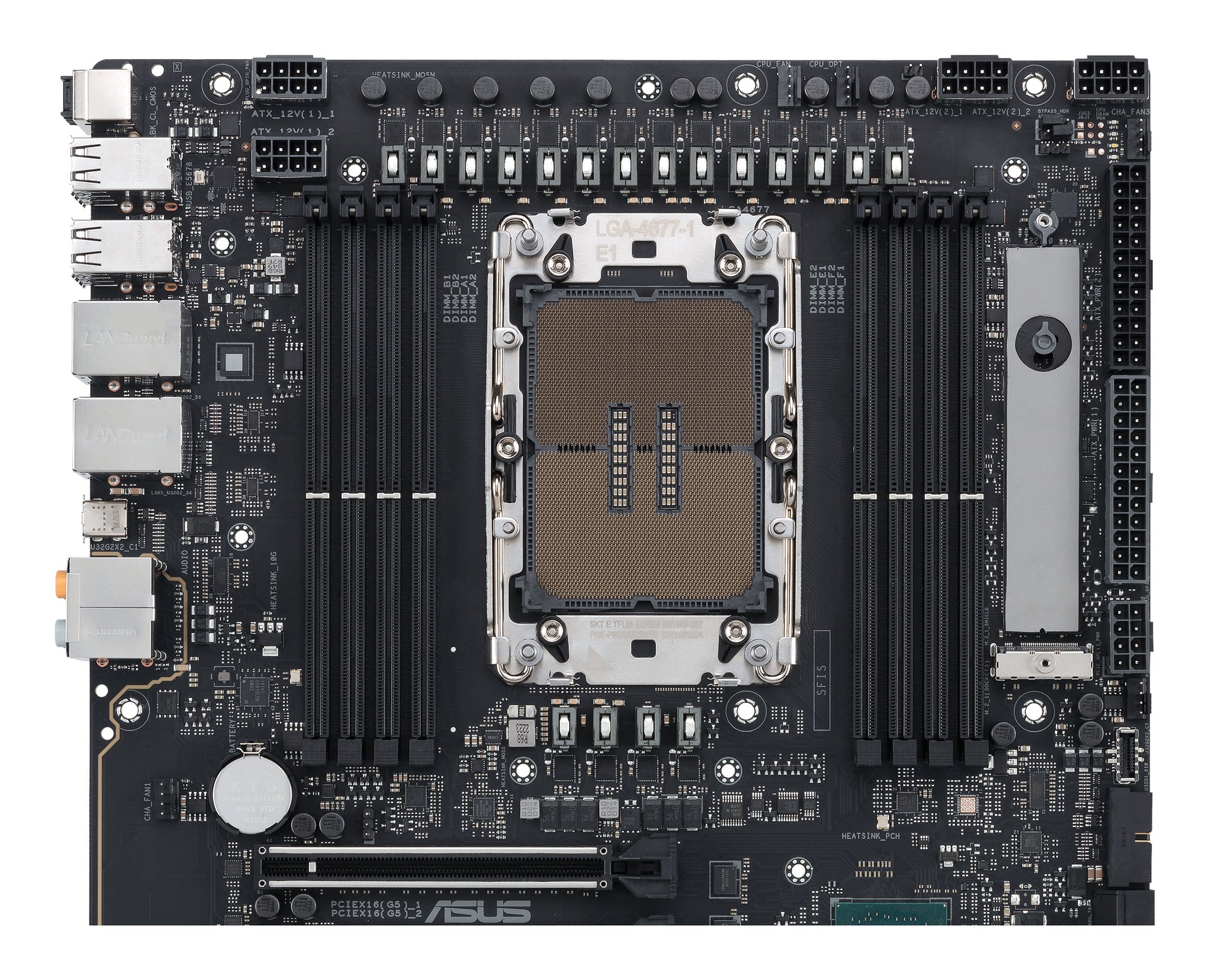

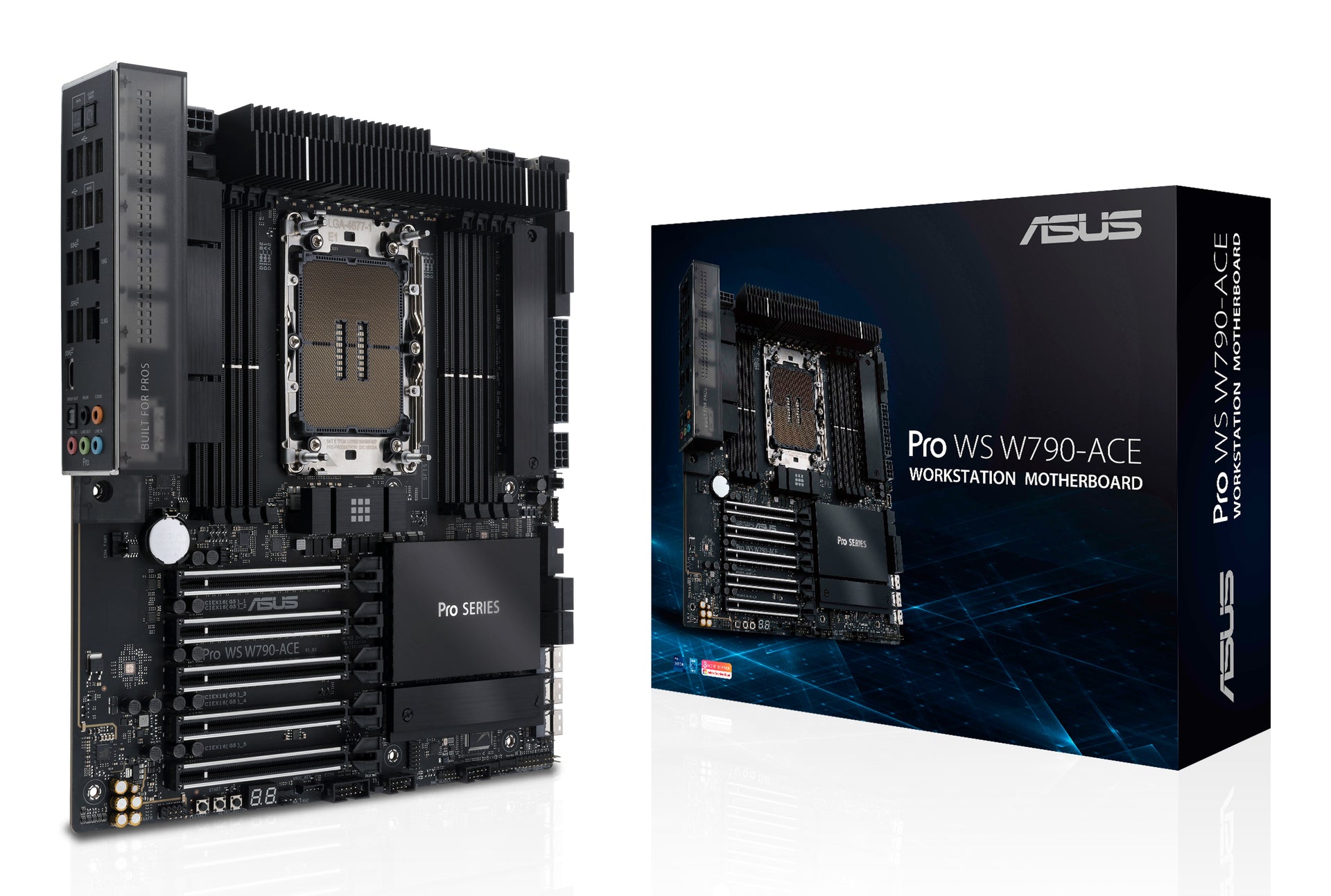

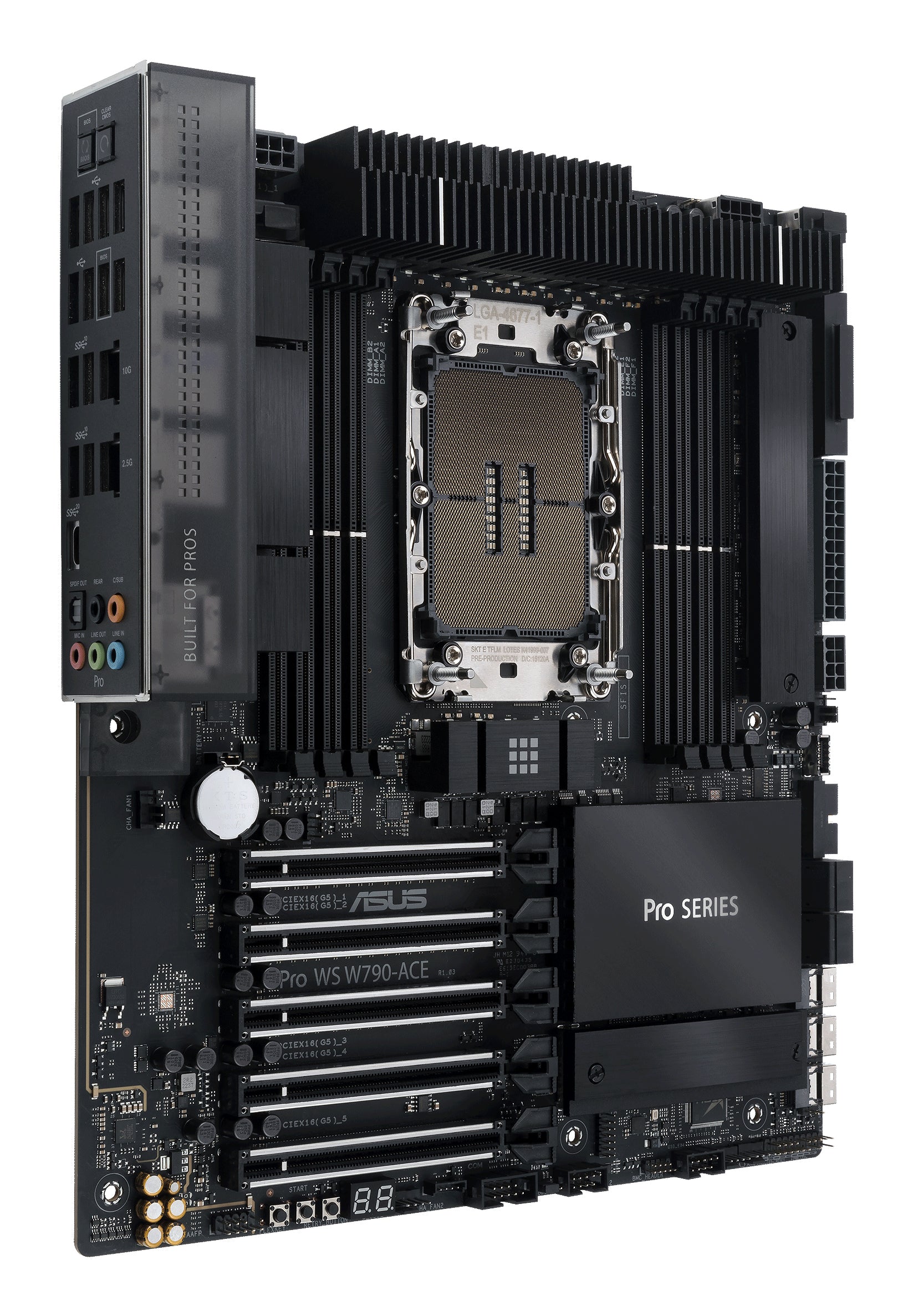

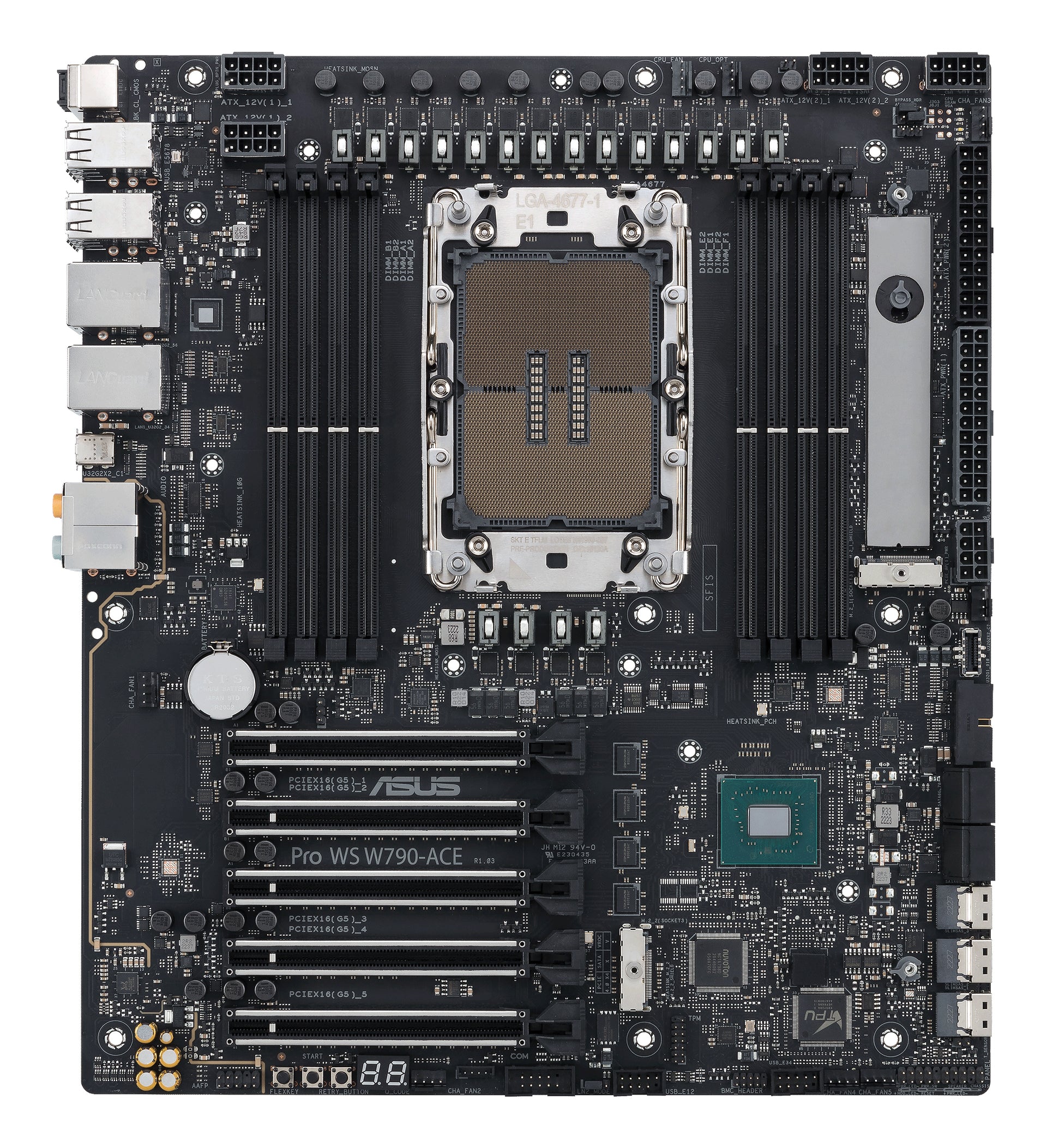

ASUS 4677 PRO WS W790-ACE SSI CEB

In Stock

Key information

Socket: LGA 4677 (Socket E)
Chipset: Intel W790
Form Factor: SSI CEB
Memory Support: DDR5-SDRAM
Memory Slots: 8
Storage: M.2, SATA III
PCIe Slots: 5
£779.68(inc. VAT) £649.73(exc. VAT)
Order within for next business day delivery

Business Finance Options

30 Day Credit
Quantity

Payment & Security

American Express Apple Pay Google Pay Klarna Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store card details nor do we have access to your card information.

Next day delivery available on selected products
Secure checkout
  • Product overview
  • Specifications
  • Reviews
Product overview

The ASUS 4677 PRO WS W790-ACE is designed for high-performance workstation builds, featuring the LGA 4677 socket and Intel W790 chipset. This motherboard is compatible with Intel Xeon W processors, making it suitable for demanding applications that require robust processing power and reliability.

Constructed in the SSI CEB form factor, the motherboard boasts a solid black finish that complements its durable build quality. It is equipped with advanced VRM and power delivery systems to ensure stable performance under load, while the efficient cooling design helps maintain optimal operating temperatures during intensive tasks.

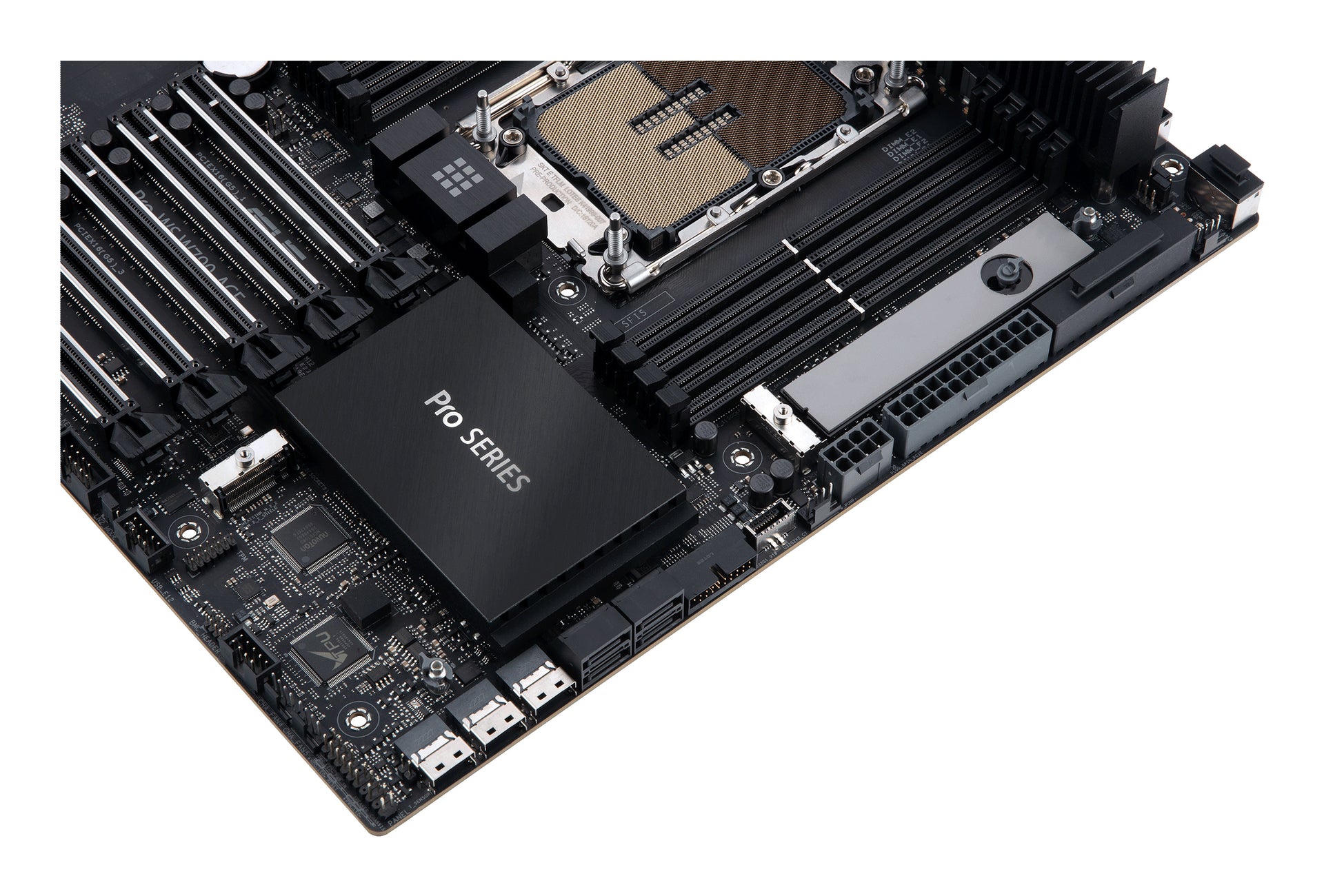

This motherboard supports DDR5-SDRAM with a maximum capacity of 2 TB across eight DIMM slots, allowing for extensive memory configurations. It operates on a quad-channel architecture, enhancing memory bandwidth for data-intensive applications. Storage options include two M.2 slots and four SATA III connectors, supporting both HDD and SSD drives, with RAID functionality for data redundancy and performance.

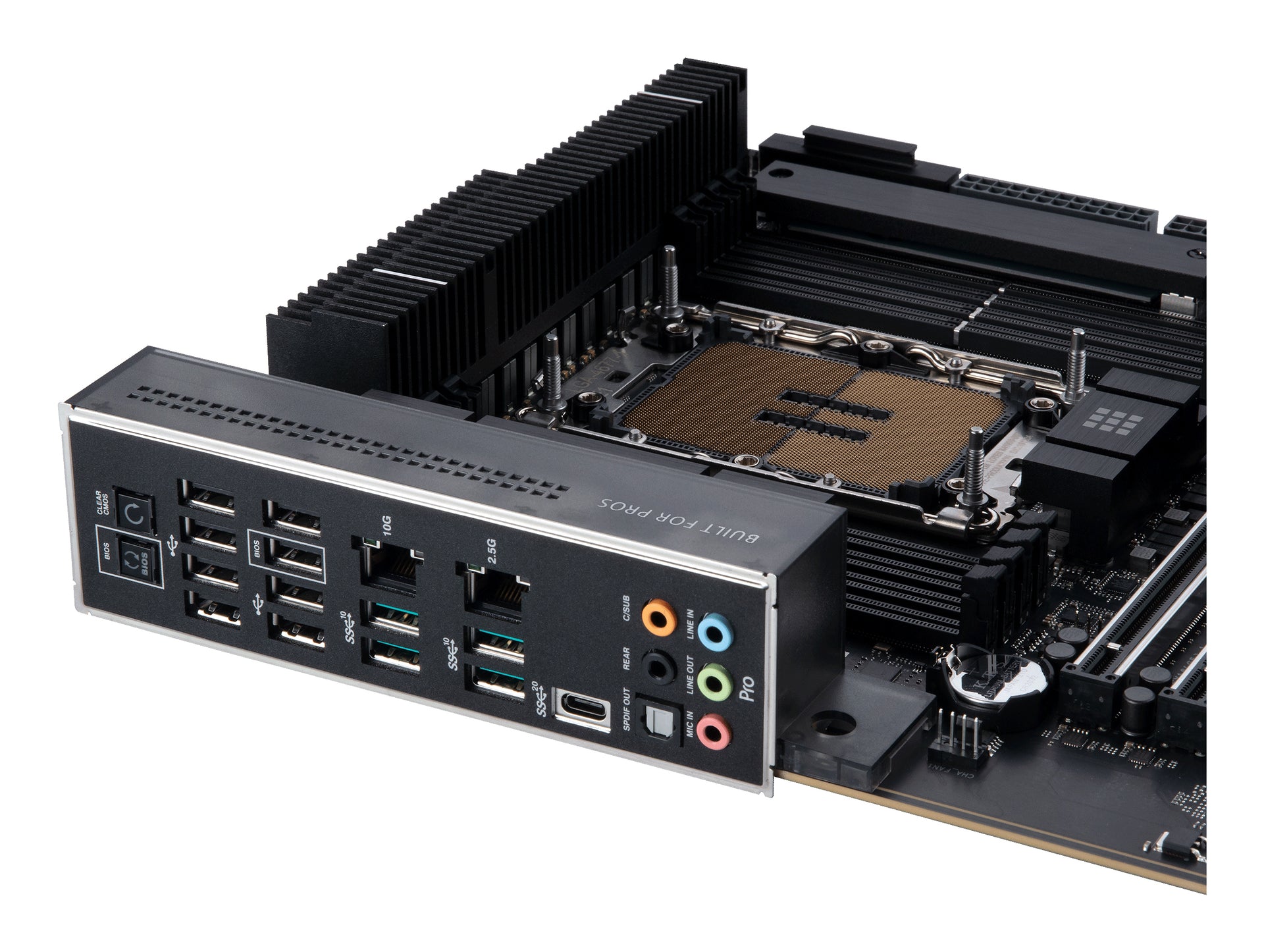

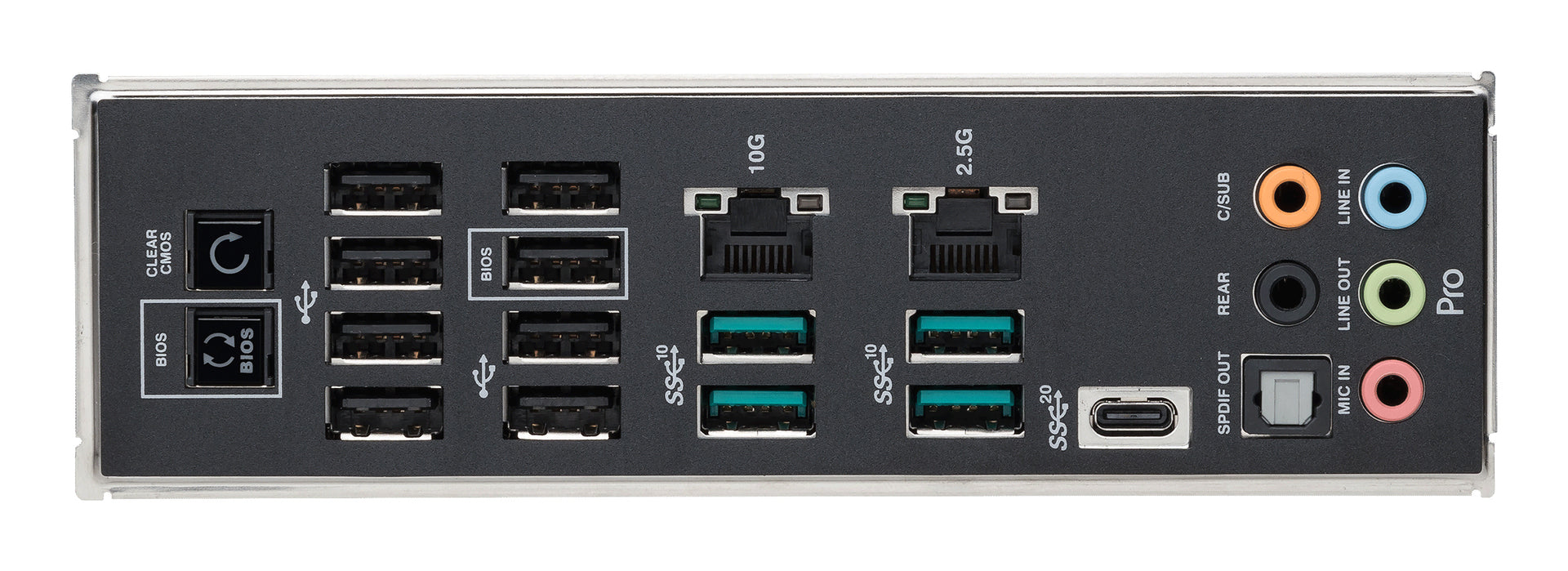

The rear I/O panel includes multiple connectivity options, featuring eight USB 2.0 ports and four USB 3.2 Gen 2 Type-A ports for high-speed data transfer. Networking capabilities are robust with two Ethernet LAN ports supporting 2.5 Gigabit and 10 Gigabit Ethernet, ensuring fast and reliable network connections. The audio system, powered by the Realtek S1220A chip, provides 7.1 channel output for immersive sound experiences.

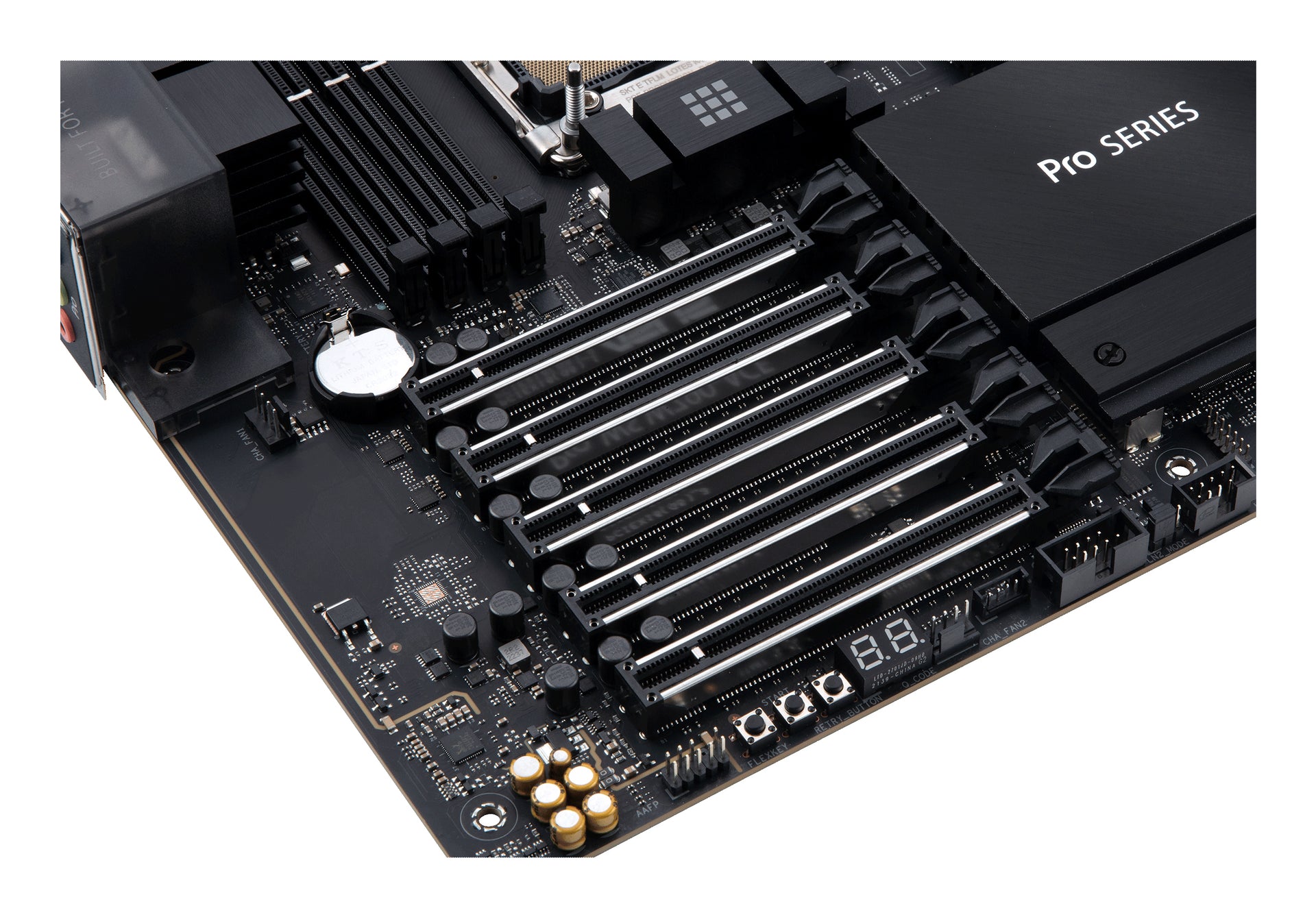

Ideal for professionals in fields such as AI/ML, 3D rendering, and simulation, the ASUS 4677 PRO WS W790-ACE delivers the necessary performance and expandability for complex workloads. Its extensive PCIe expansion capacity allows for the integration of additional GPUs or other expansion cards, making it a versatile choice for high-demand environments.

Specifications
Processor & Chipset
Processor socket
LGA 4677 (Socket E)
Processor manufacturer
Intel
Compatible processor series
Intel Xeon W
Motherboard chipset
Intel W790
Motherboard chipset family
Intel
Form Factor & Design
Motherboard form factor
SSI CEB
Product colour
Black
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
Clear CMOS button
Yes
Memory
Supported memory types
DDR5-SDRAM
Maximum internal memory
2 TB
Number of memory slots
8
Memory slots type
DIMM
Memory channels
Quad-channel
Storage & Expansion
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Number of M.2 (M) slots
2
PCI Express x16 (Gen 5.x) slots
5
Rear I/O & Connectivity
USB 2.0 ports quantity
8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
HDMI ports quantity
0
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
0
Ethernet LAN (RJ-45) ports
2
Headphone outputs
1
Internal I/O
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
12V power connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
5
Number of COM connectors
1
Front panel audio connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Networking
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi
No
Top Wi-Fi standard
Not available
Audio
Audio chip
Realtek S1220A
Audio output channels
7.1 channels
Weight & Dimensions
Weight
1.81 kg
Height
50 mm
Width
305 mm
Depth
277 mm
Package weight
3.52 kg
Package height
108 mm
Package width
370 mm
Package depth
312 mm
