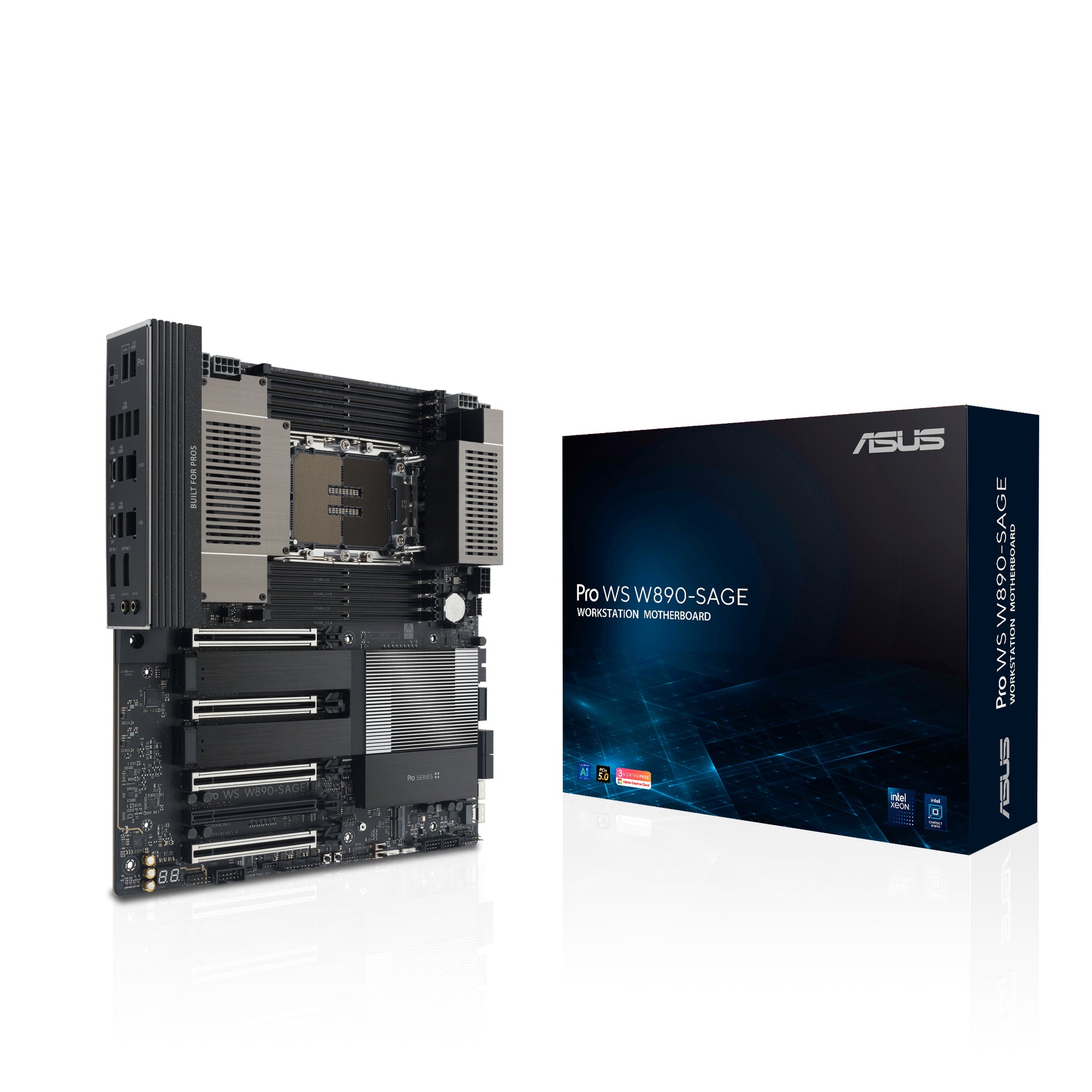

ASUS 4710-2 PRO WS W890-SAGE CEB

In Stock

Key information

Socket: LGA 4710-2
Chipset: Intel W890
Form Factor: CEB
Memory Support: DDR5-SDRAM
Memory Slots: 8
Storage: M.2, SATA III, SlimSAS
PCIe Slots: 4 x PCIe x16 (Gen 5.0), 1 x PCIe x16 (Gen 4.0)
£834.67(inc. VAT) £695.55(exc. VAT)
Order within for next business day delivery

Business Finance Options

30 Day Credit
Quantity

Payment & Security

American Express Apple Pay Google Pay Klarna Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store card details nor do we have access to your card information.

Next day delivery available on selected products
Secure checkout
  • Product overview
  • Specifications
  • Reviews
Product overview

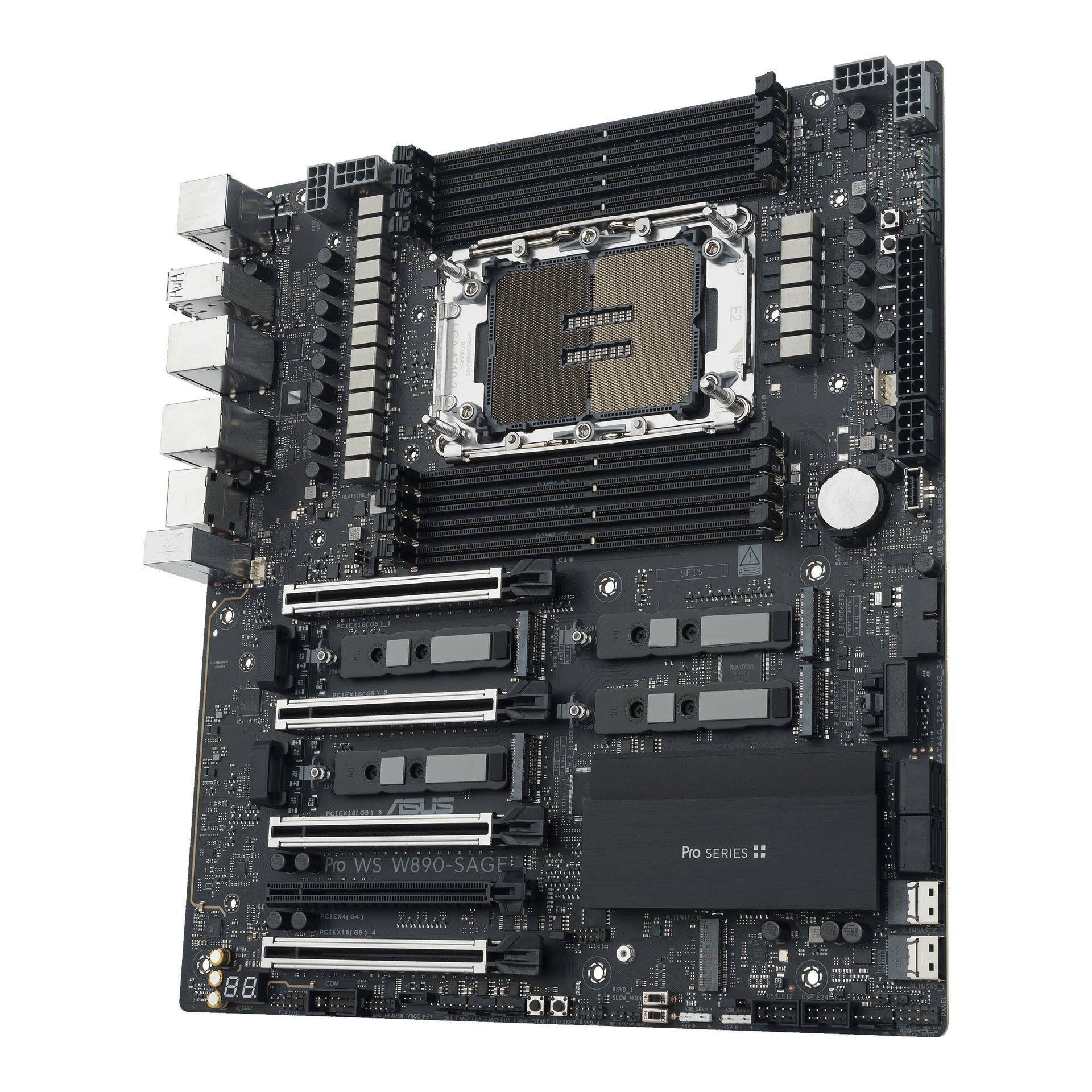

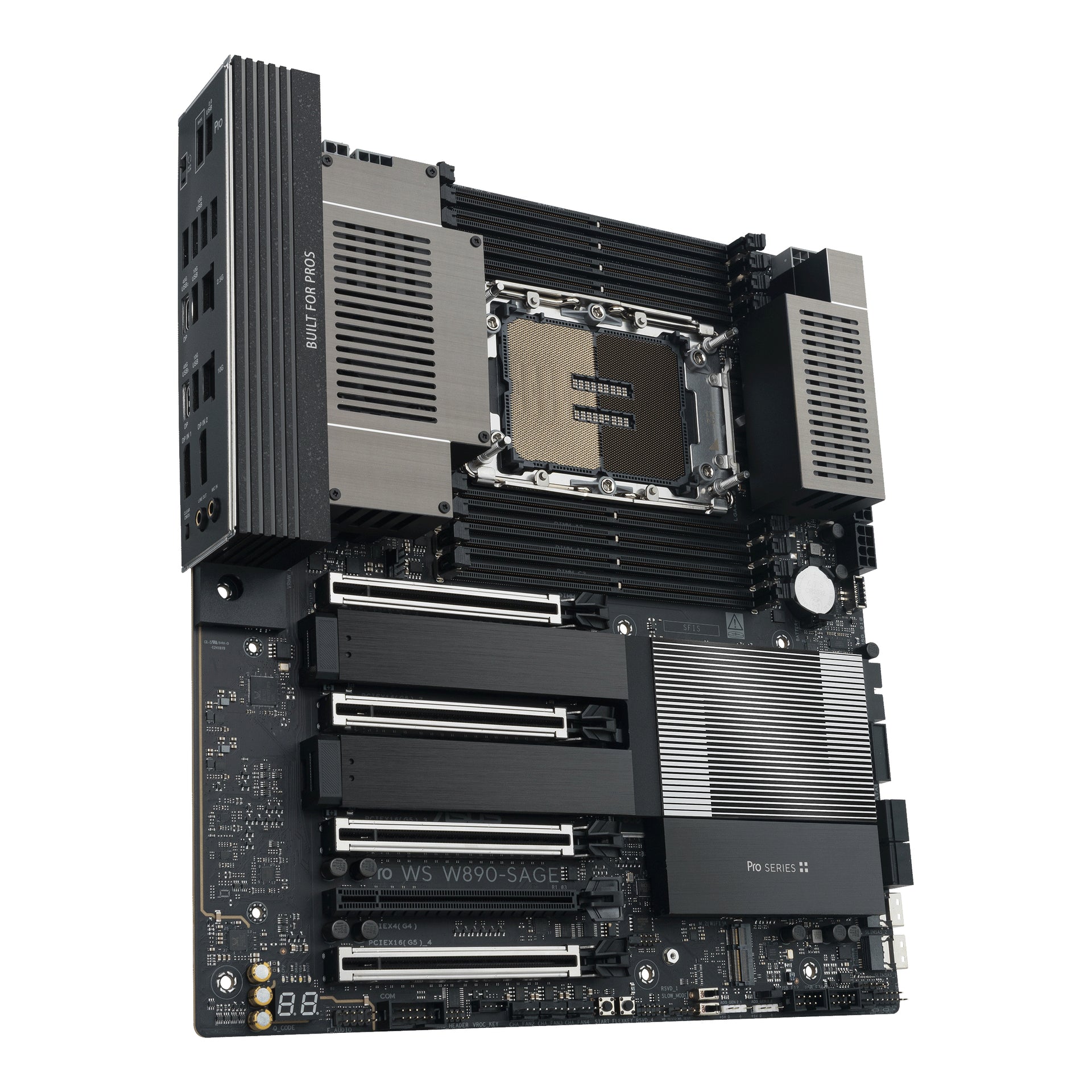

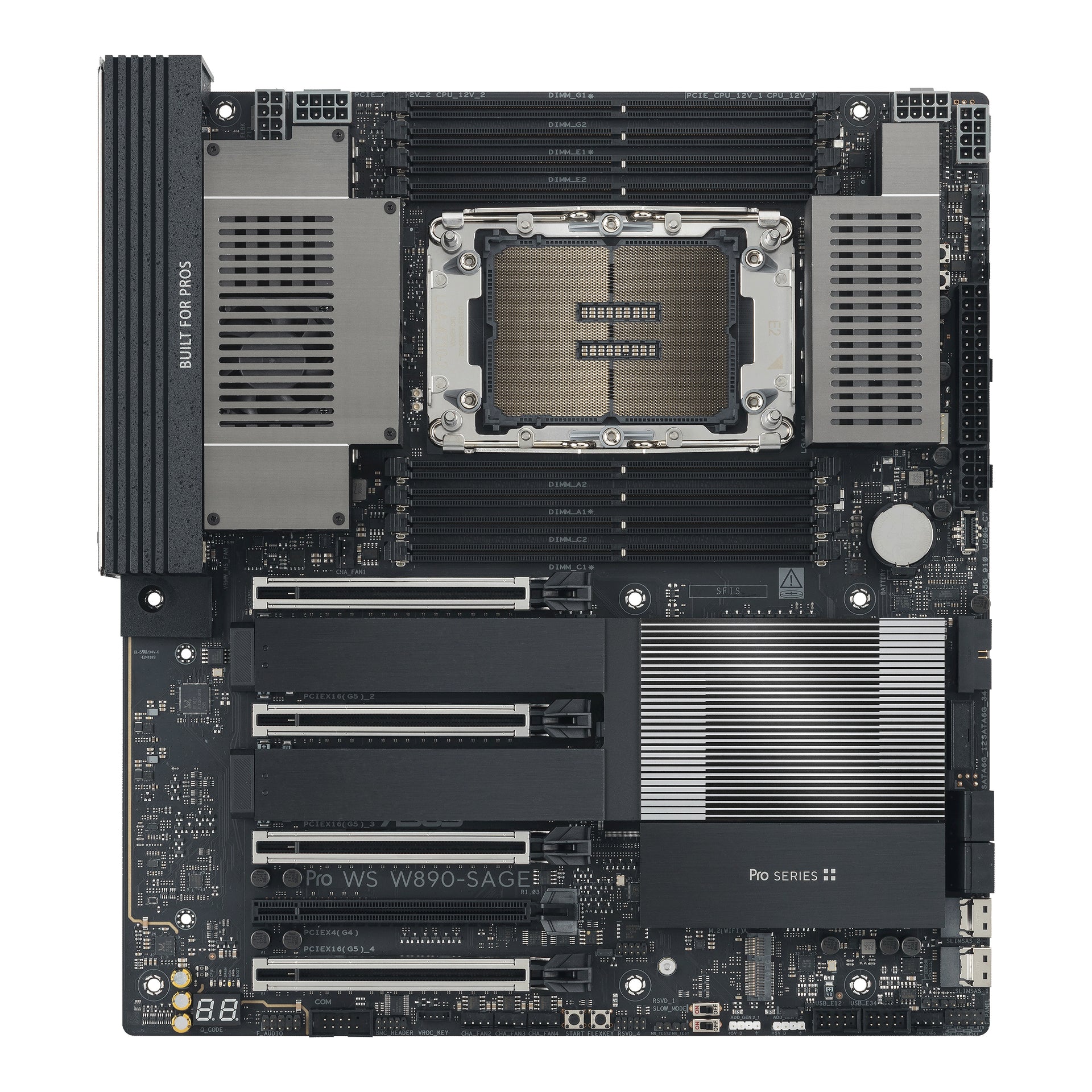

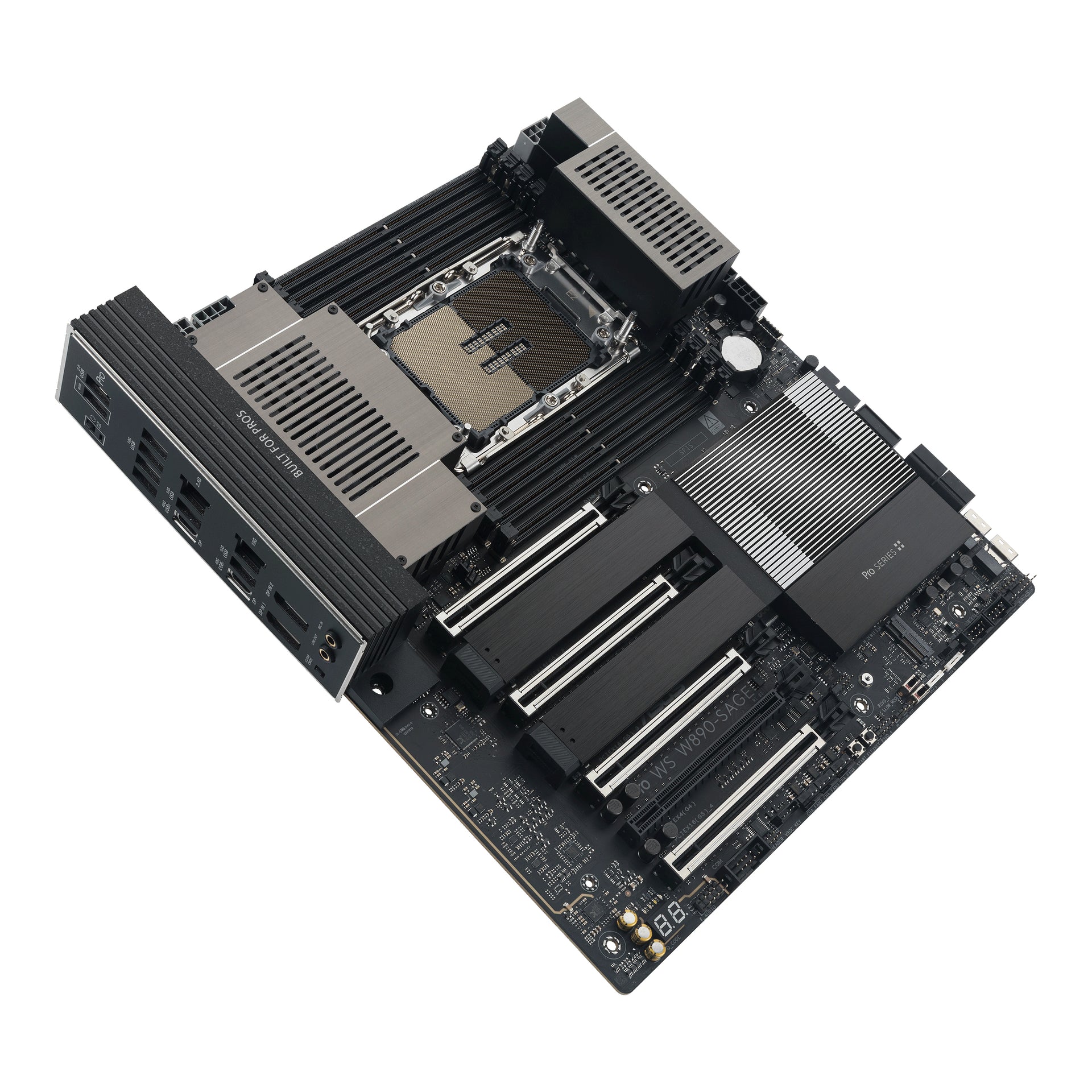

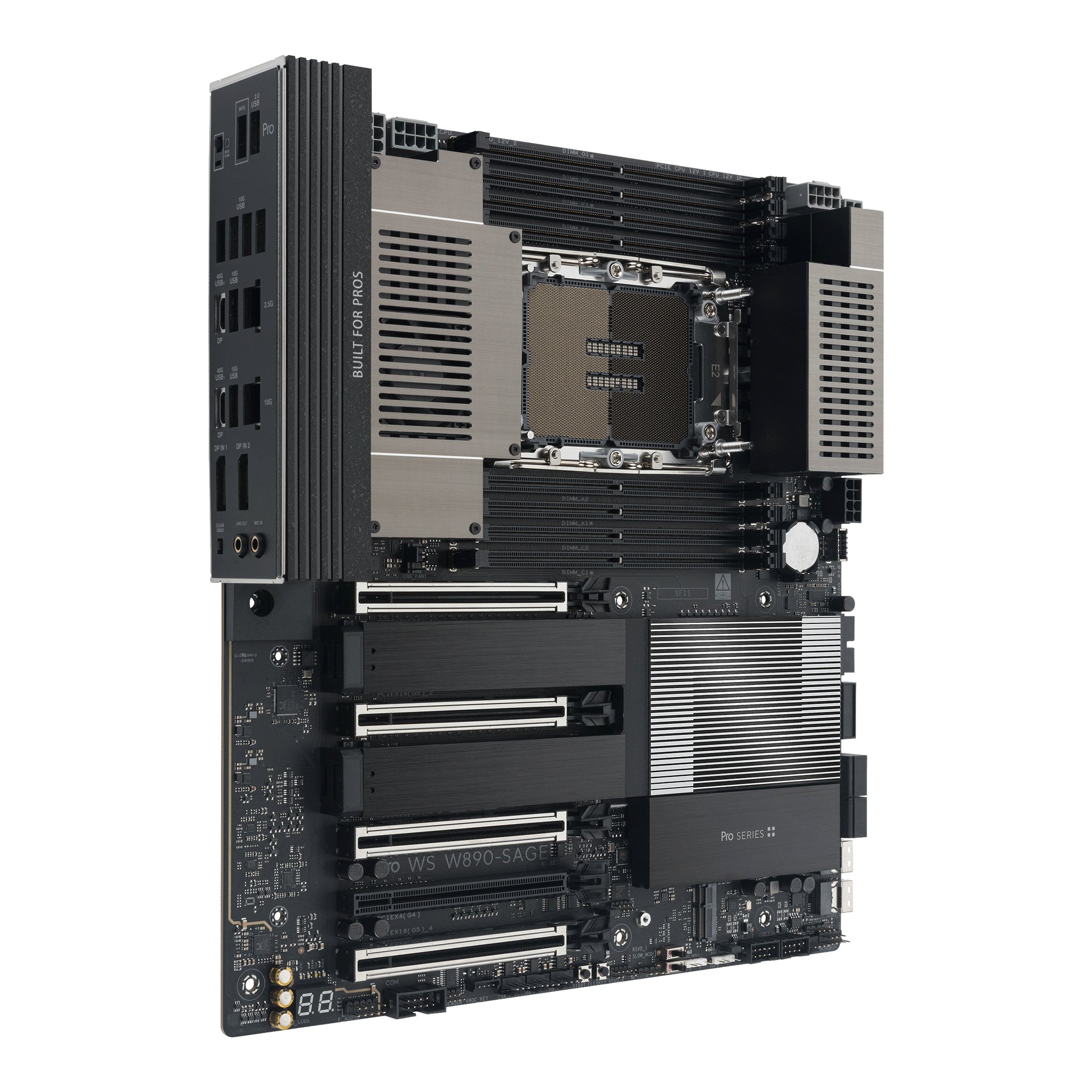

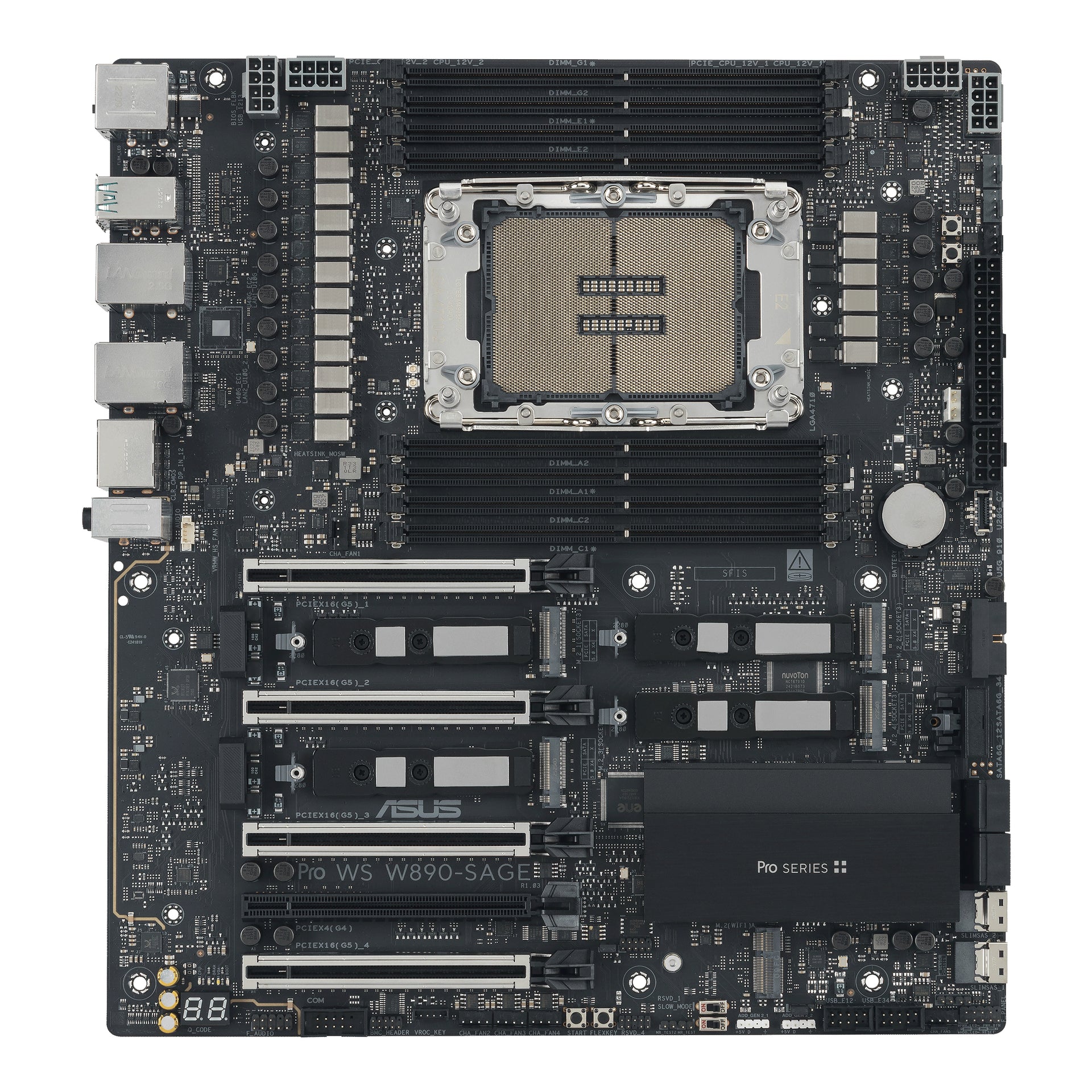

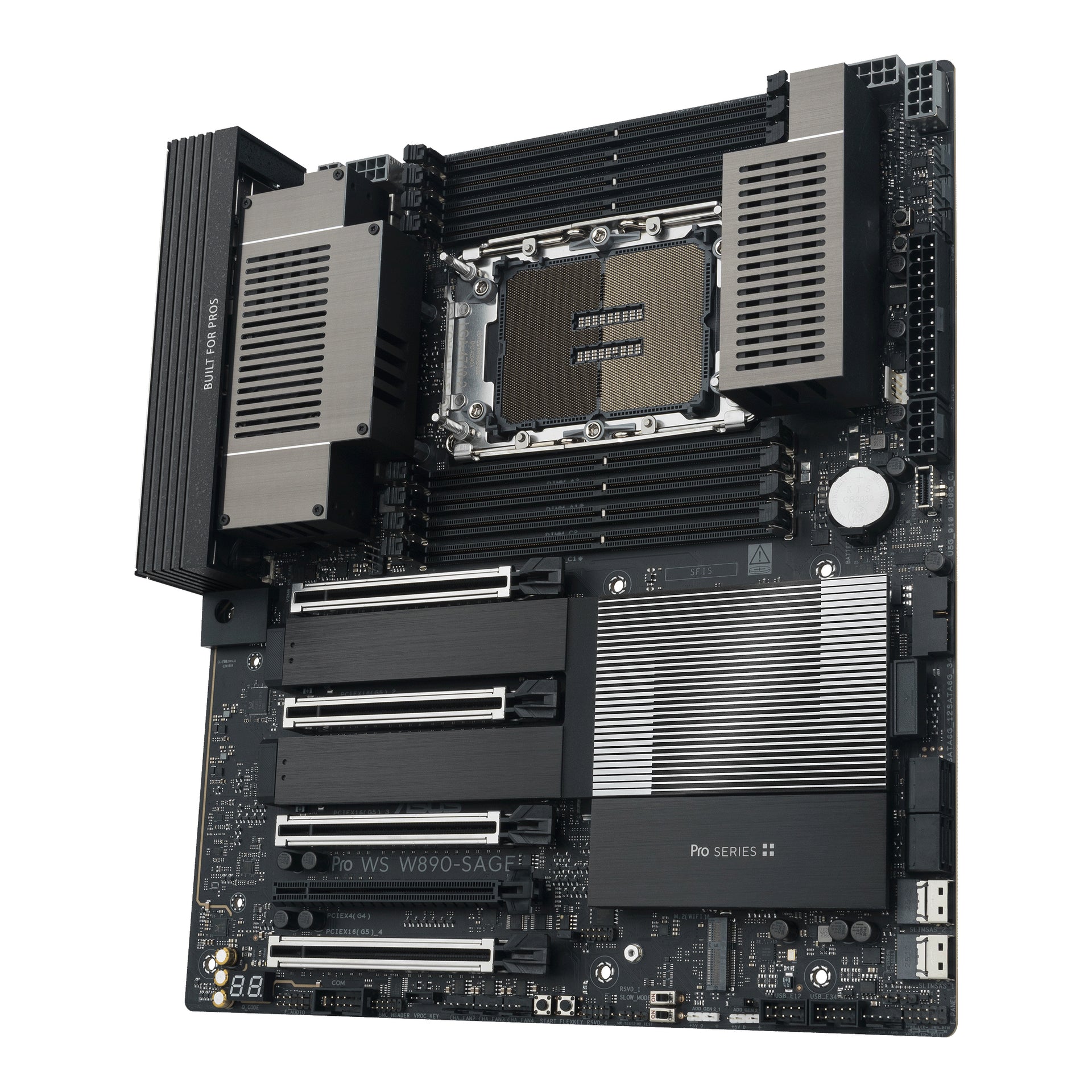

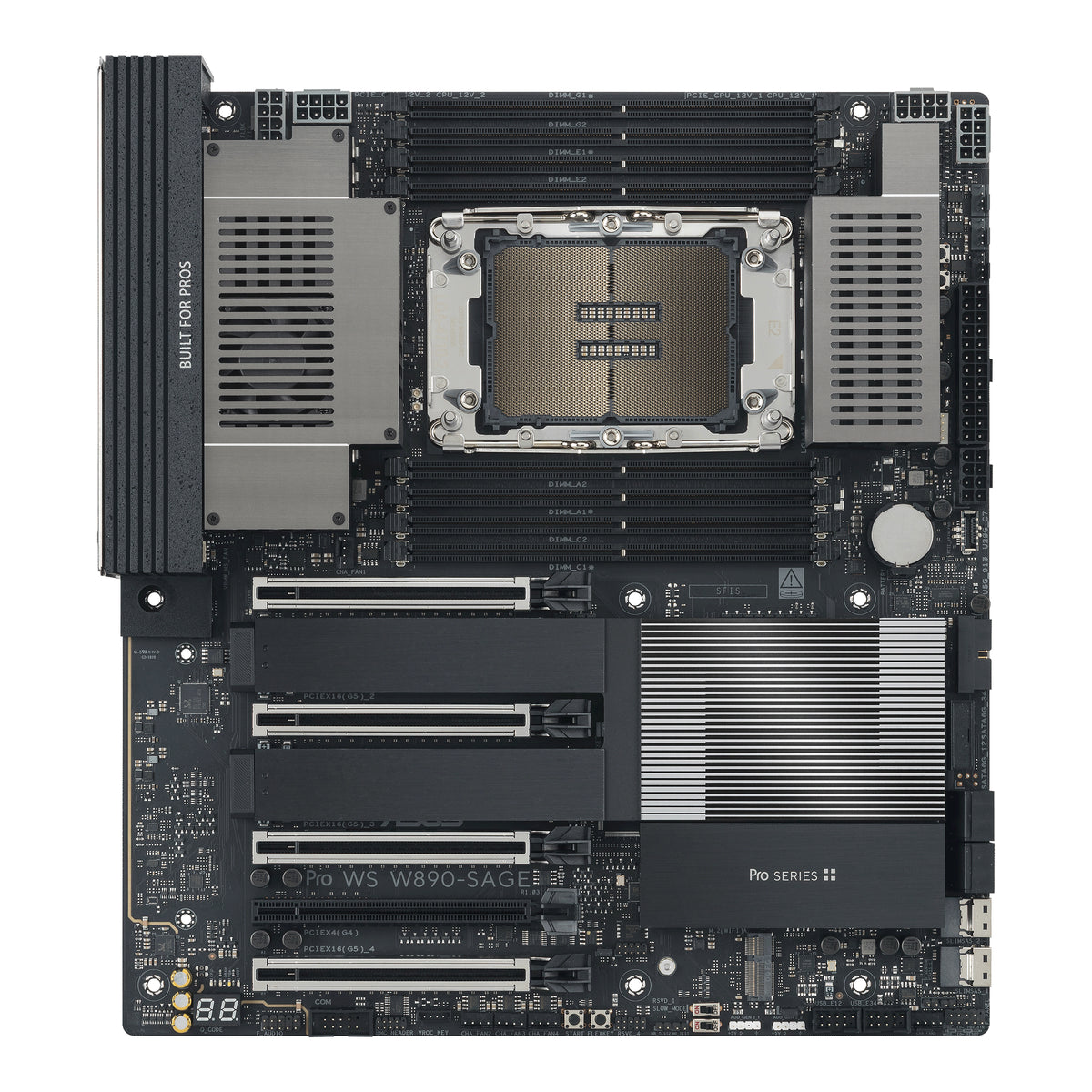

The ASUS 4710-2 PRO WS W890-SAGE is designed for Intel Xeon processors, featuring the LGA 4710-2 socket and Intel W890 chipset. This motherboard is tailored for workstation builds, providing robust performance for demanding applications. With its reliable architecture, it supports a wide range of professional workloads, making it an ideal choice for users requiring high computational power.

Constructed in a CEB form factor, this motherboard boasts a passive cooling type, ensuring efficient thermal management while maintaining a sleek black aesthetic. The physical build quality is designed to withstand the rigours of continuous operation, making it suitable for both professional environments and high-performance computing tasks. The motherboard's design incorporates advanced power delivery systems to support the needs of high-end processors.

Memory support is extensive, with the capability to accommodate up to 4 TB of DDR5-SDRAM across eight DIMM slots, configured for quad-channel operation. This allows for significant memory bandwidth, essential for memory-intensive applications. The motherboard also features multiple storage options, including four M.2 slots and support for SATA III and SlimSAS interfaces, enabling users to implement a versatile storage solution tailored to their needs.

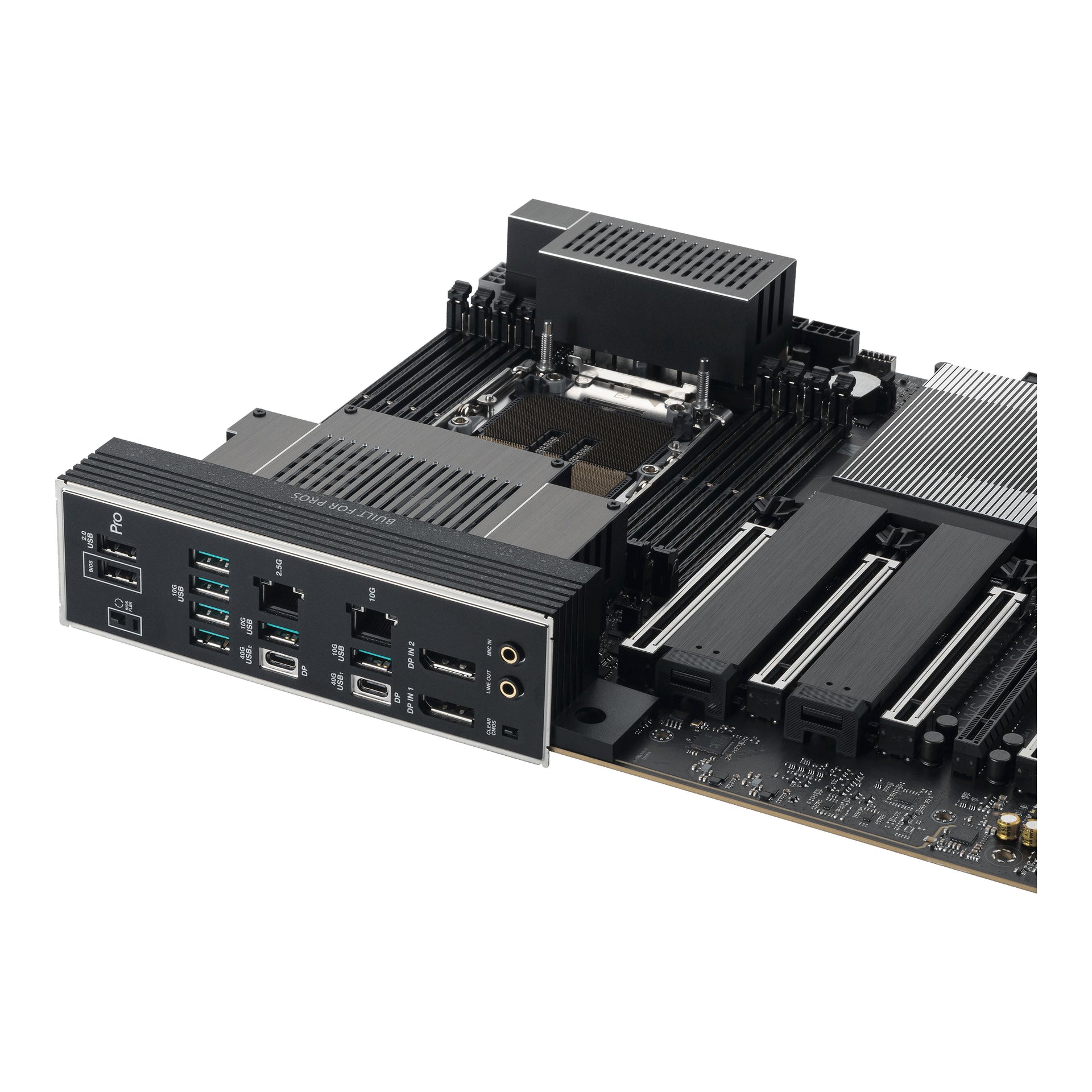

Connectivity options are plentiful, with a variety of USB ports, including six USB 3.2 Gen 2 Type-A ports and two USB4 Gen 3x2 ports, ensuring fast data transfer rates. The rear I/O panel includes dual Ethernet LAN ports, supporting both 2.5GbE and 10GbE connections, which are crucial for high-speed networking in professional settings. The audio capabilities are enhanced by the Realtek ALC1220P chip, providing 7.1 channel audio output for immersive sound experiences.

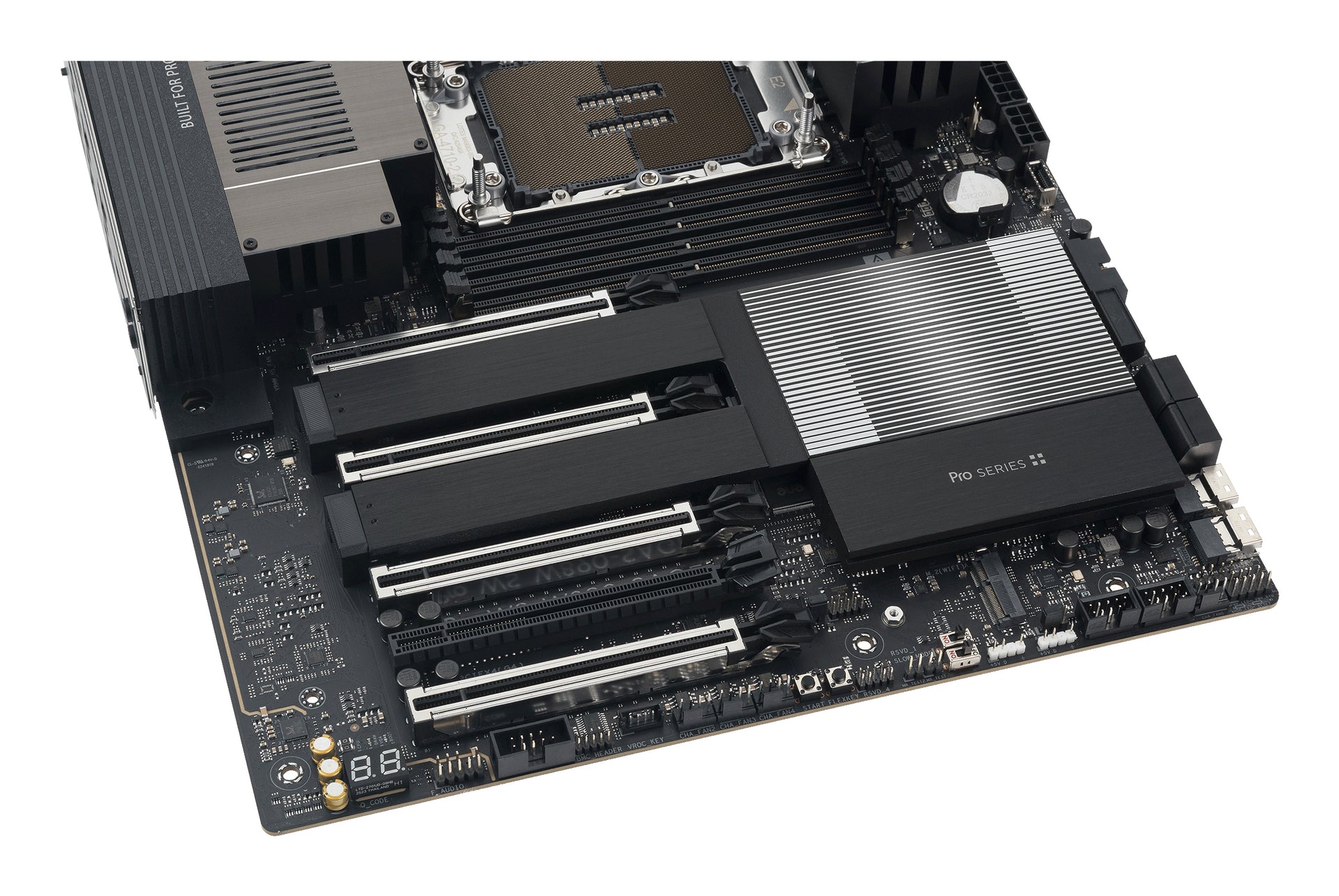

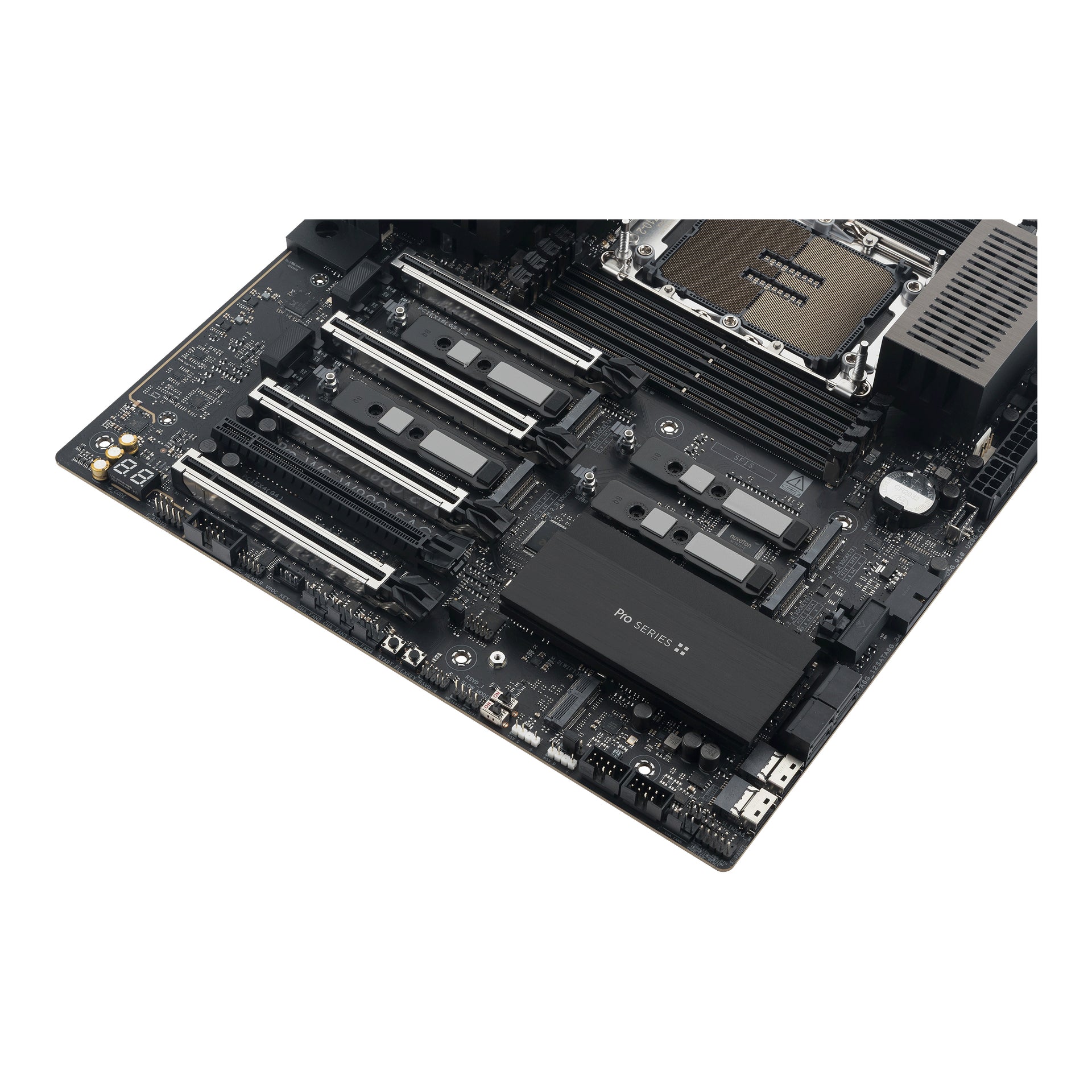

This motherboard is well-suited for tasks such as 3D rendering, simulation, and data-intensive workloads, thanks to its powerful specifications and extensive PCIe expansion capacity. With multiple PCIe x16 slots available, users can easily expand their system to meet growing demands, ensuring longevity and adaptability in a rapidly evolving technological landscape.

Specifications
Processor & Chipset
Processor socket
LGA 4710-2
Supported processor sockets
LGA 4710-2
Processor manufacturer
Intel
Compatible processor series
Intel® Xeon®
Motherboard chipset
Intel W890
Motherboard chipset family
Intel
Form Factor & Design
Motherboard form factor
CEB
Product colour
Black
Cooling type
Passive
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
BIOS flashback button
Yes
Clear CMOS button
Yes
Memory
Supported memory types
DDR5-SDRAM
Maximum internal memory
4 TB
Number of memory slots
8
Memory slots type
DIMM
Memory channels
Quad-channel
Storage & Expansion
Supported storage drive interfaces
M.2, SATA III, SlimSAS
Supported storage drive types
HDD & SSD
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 5, 1, 10
Number of M.2 (M) slots
4
Number of M.2 (E) slots
1
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
4th M.2 highest PCI Express generation
5.0
4th M.2 largest key size
2280
PCI Express x16 (Gen 5.x) slots
4
PCI Express x16 (Gen 4.x) slots
1

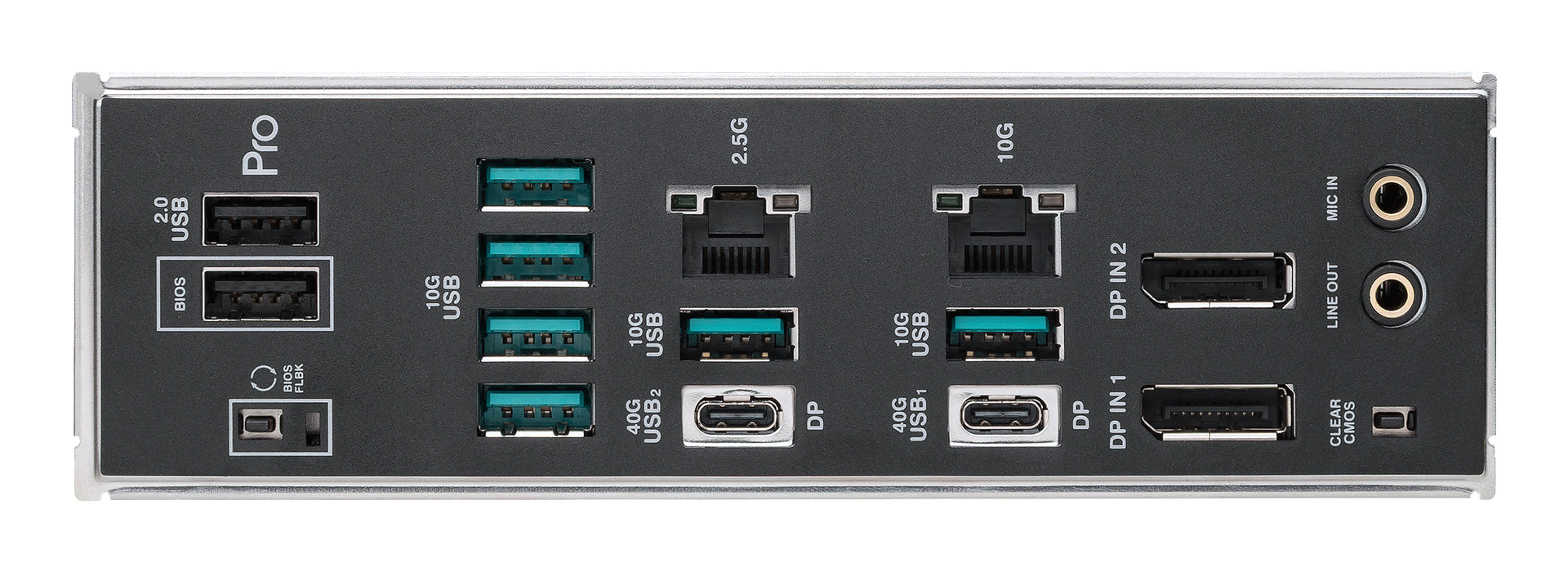

Rear I/O & Connectivity
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB4 Gen 3x2 ports quantity
2
HDMI ports quantity
0
DisplayPort version
1.4
DisplayPorts quantity
2
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
0
Ethernet LAN (RJ-45) ports
2
Headphone outputs
1
Line-in
Yes
Internal I/O
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
5
12V power connector
Yes
Number of SATA III connectors
4
Integrated SAS ports
2
Number of CPU fan connectors
2
Number of chassis fan connectors
5
Number of water pump connectors
1
Number of RGB LED pin headers
2
RGB LED pin header
Yes
Number of COM connectors
1
Number of temperature sensor headers
1
Chassis intrusion connector
Yes
Front panel connector
Yes
Front panel audio connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Networking
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi
No
Top Wi-Fi standard
Not available
Audio
Audio chip
Realtek ALC1220P
Audio output channels
7.1 channels
Graphics & Multi-GPU
Maximum resolution
7680 x 4320 pixels
Parallel processing technology support
Not supported
Weight & Dimensions
Weight
2.75 kg
Height
50 mm
Width
305 mm
Depth
280 mm
Package weight
4.12 kg
Package height
100 mm
Package width
376 mm
Package depth
320 mm
