ASUS 4710-2 PRO WS W890E-SAGE SE Intel W890 EEB

In Stock

Key information

Socket: LGA 4710-2
Chipset: Intel W890
Form Factor: EEB
Memory Support: DDR5-SDRAM
Memory Slots: 8
Storage: M.2, SATA III, SlimSAS
PCIe Slots: 7 (Gen 5.0), 1 (Gen 4.0)
£1,202.53(inc. VAT) £1,002.10(exc. VAT)
Order within for next business day delivery

Business Finance Options

30 Day Credit
Quantity

Payment & Security

American Express Apple Pay Google Pay Klarna Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store card details nor do we have access to your card information.

Next day delivery available on selected products
Secure checkout
  • Product overview
  • Specifications
  • Reviews
Product overview

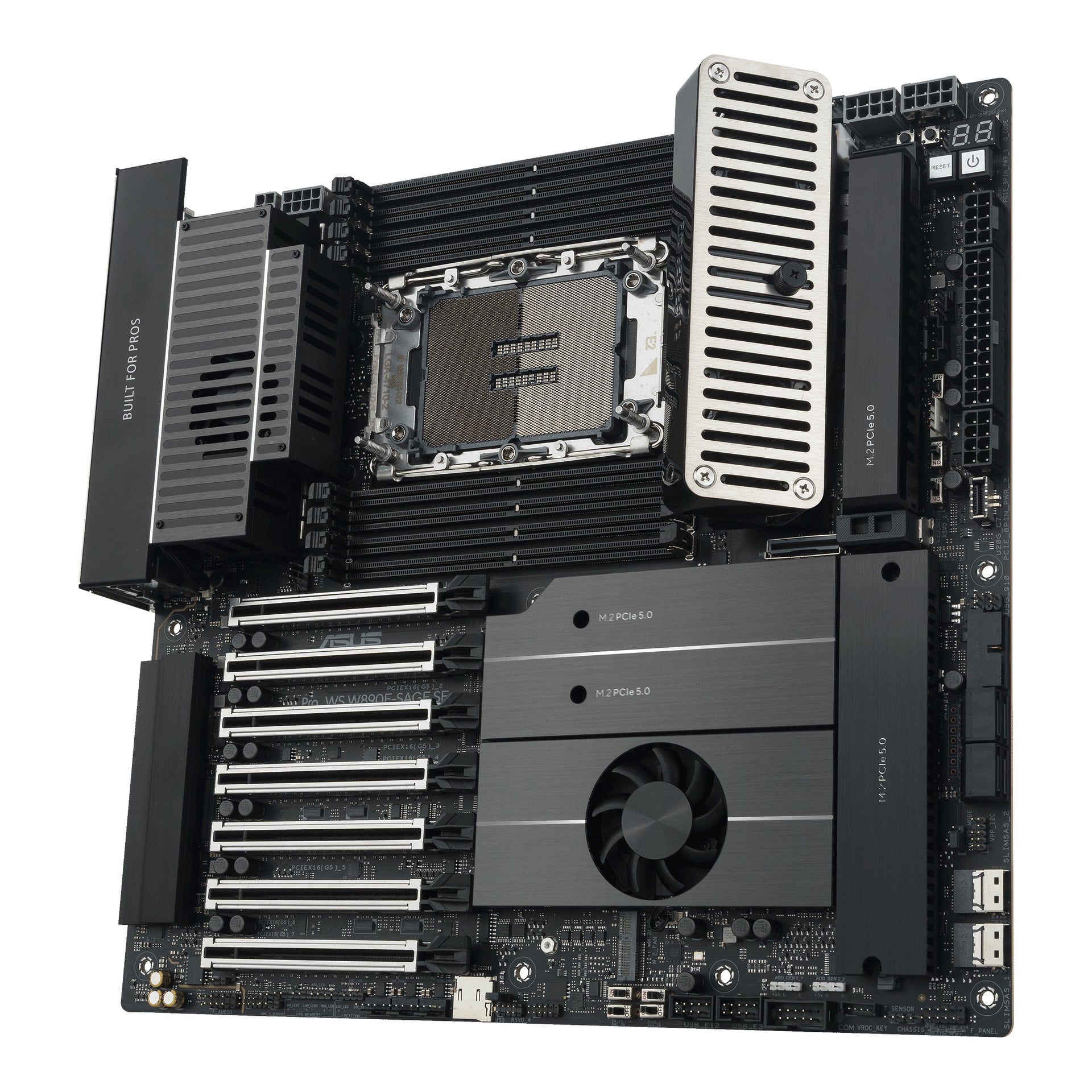

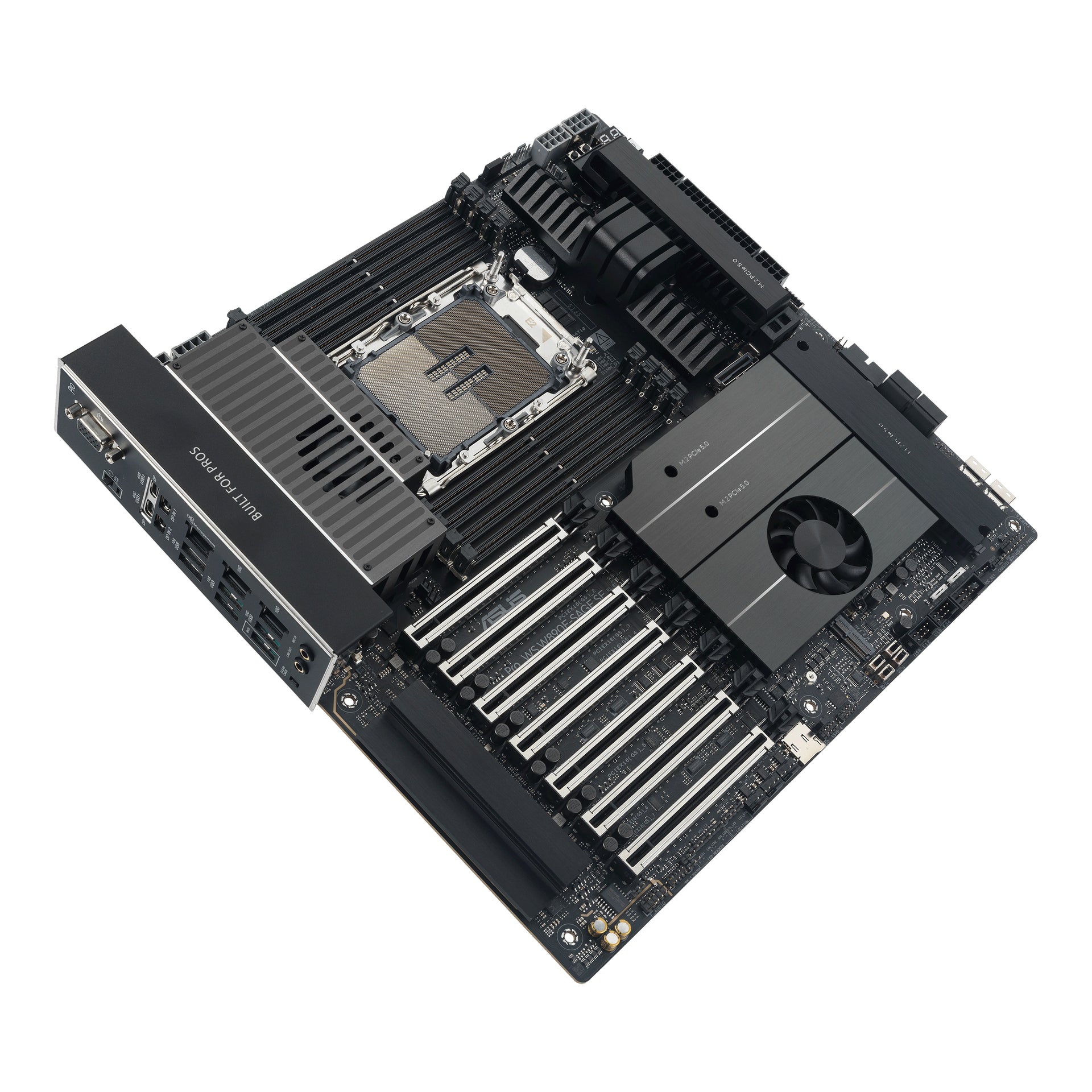

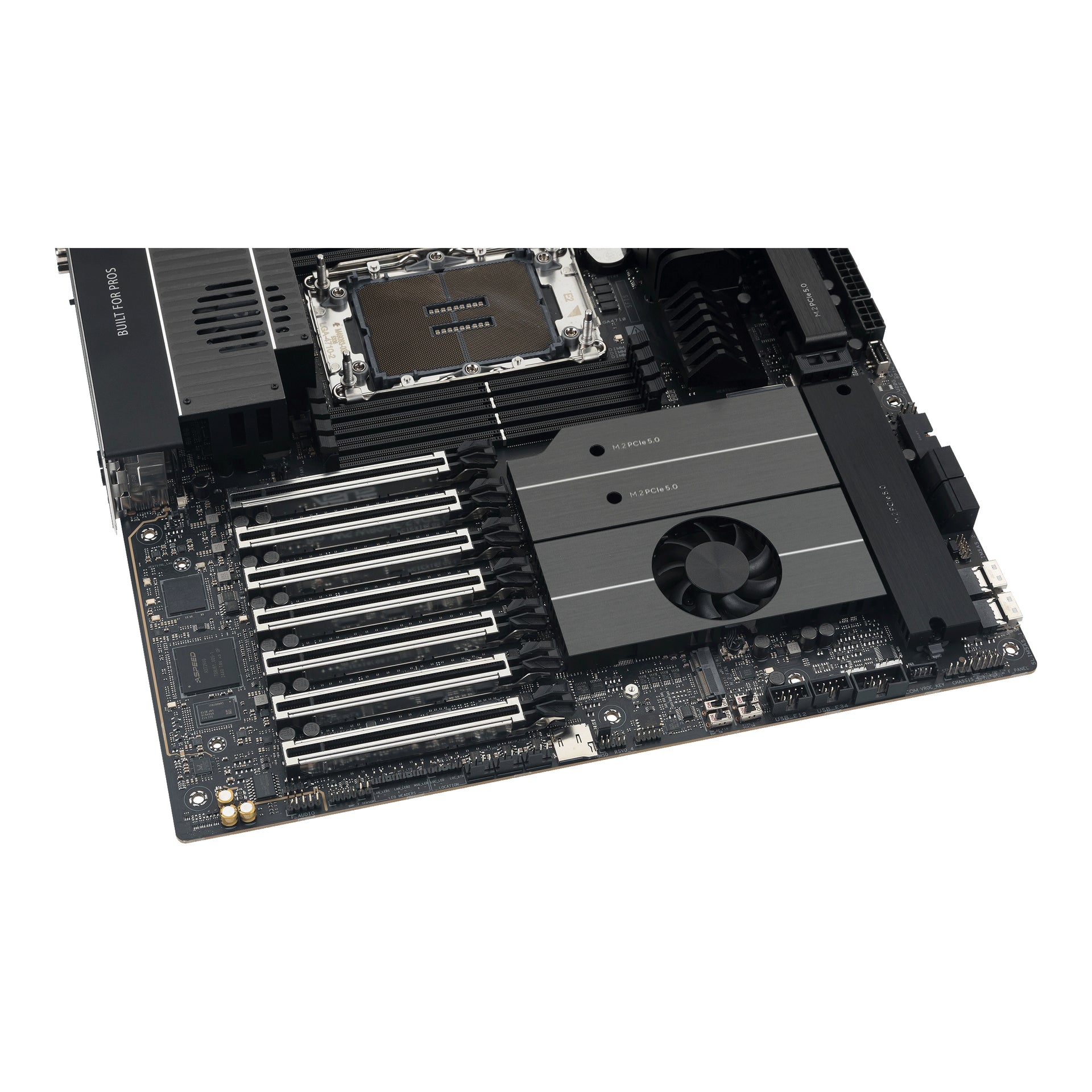

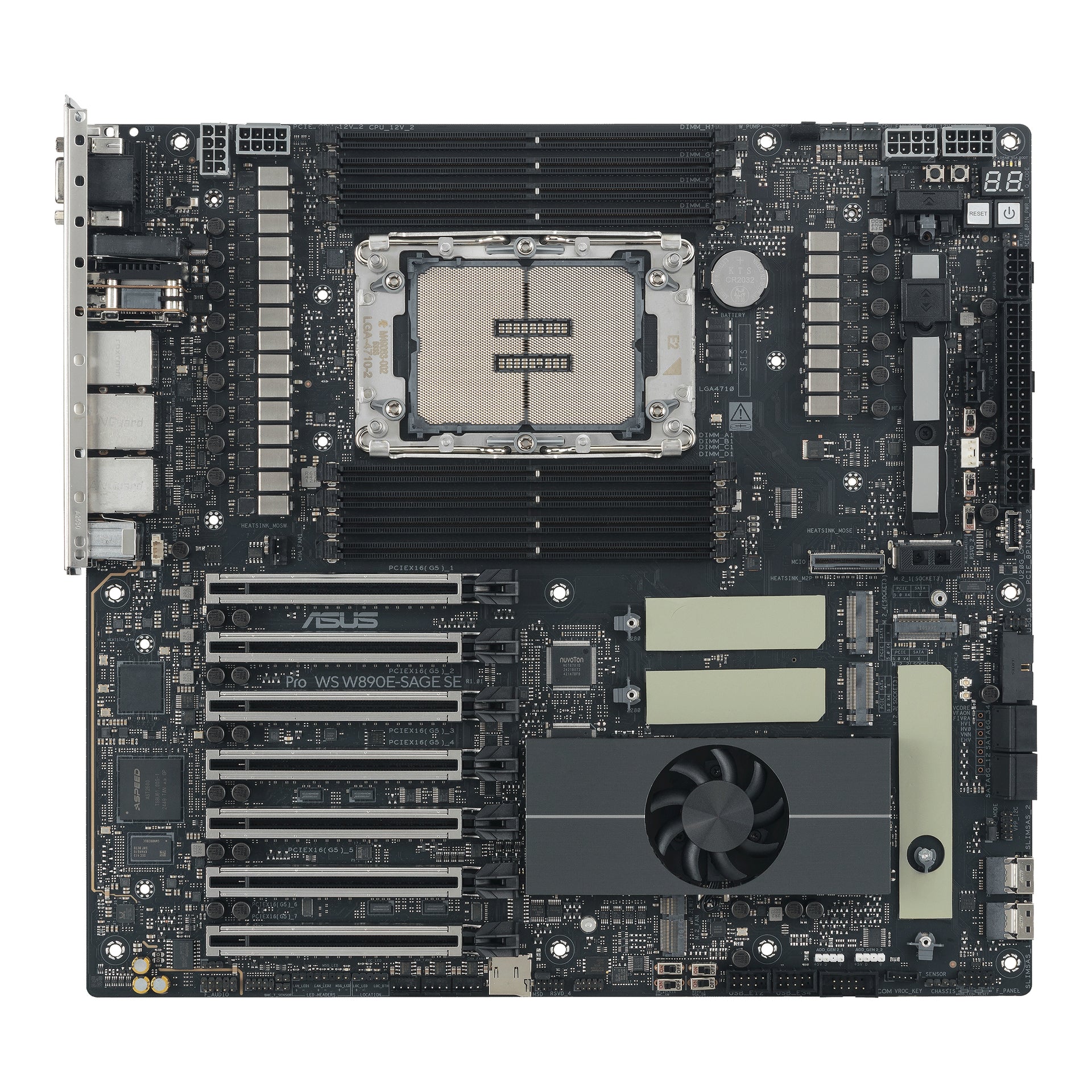

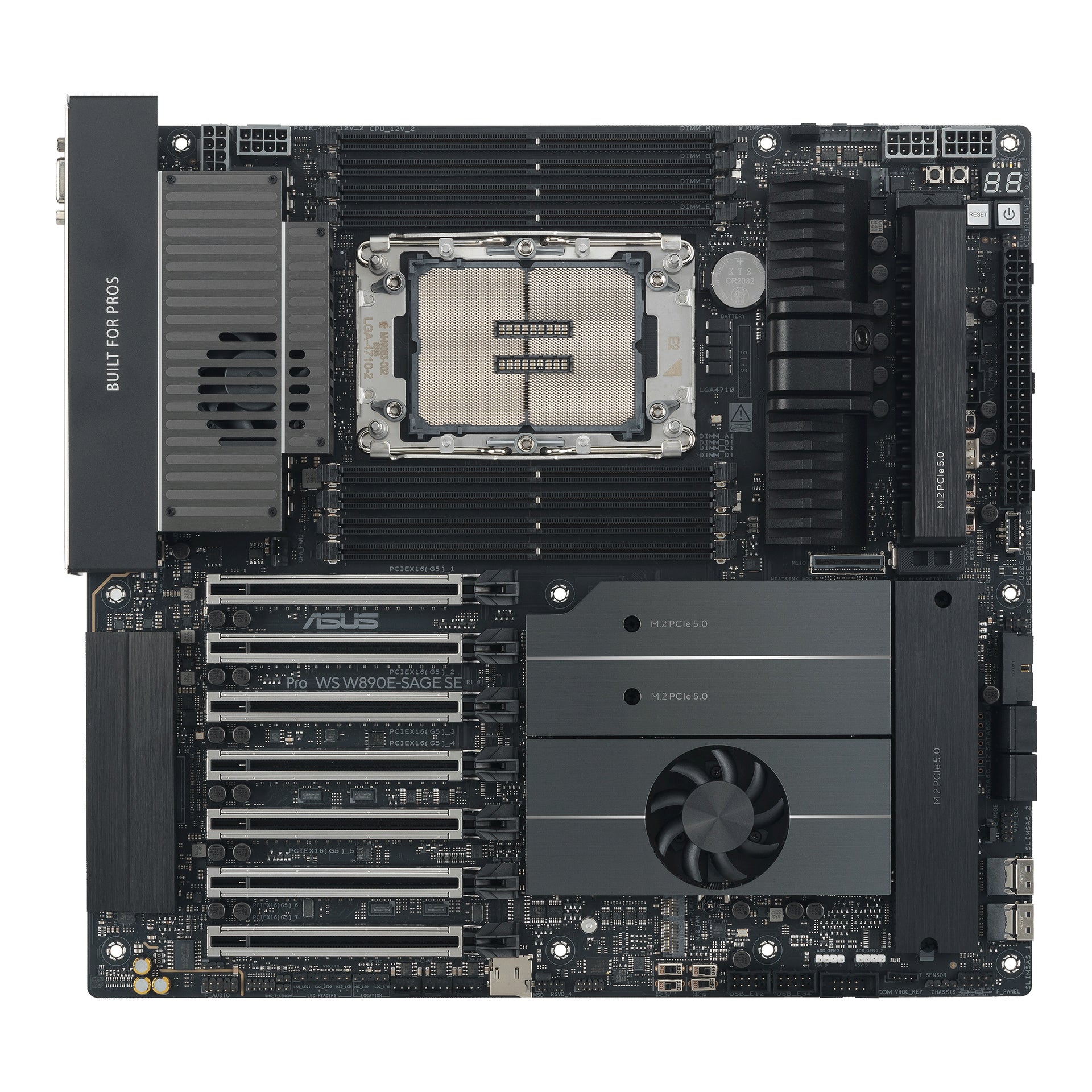

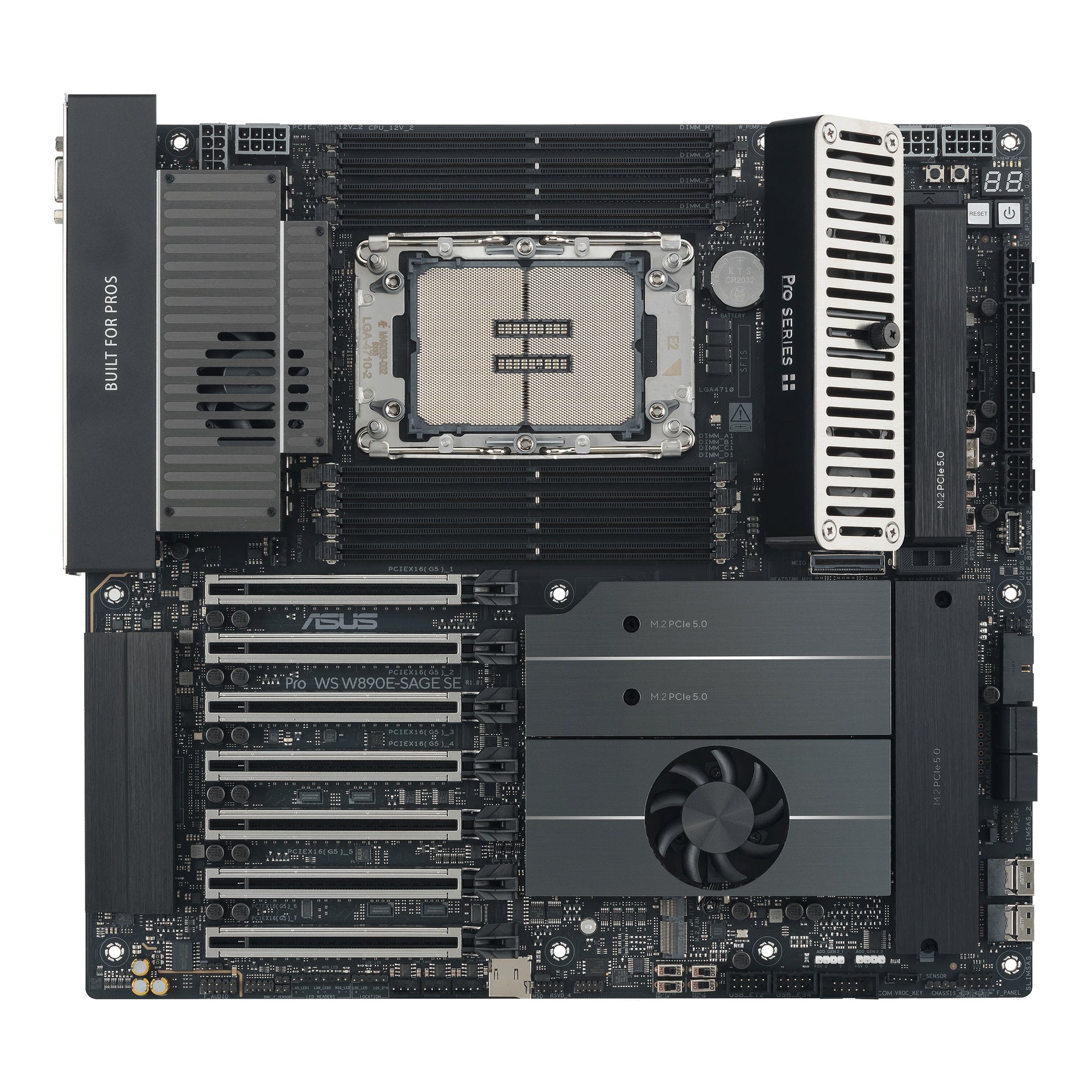

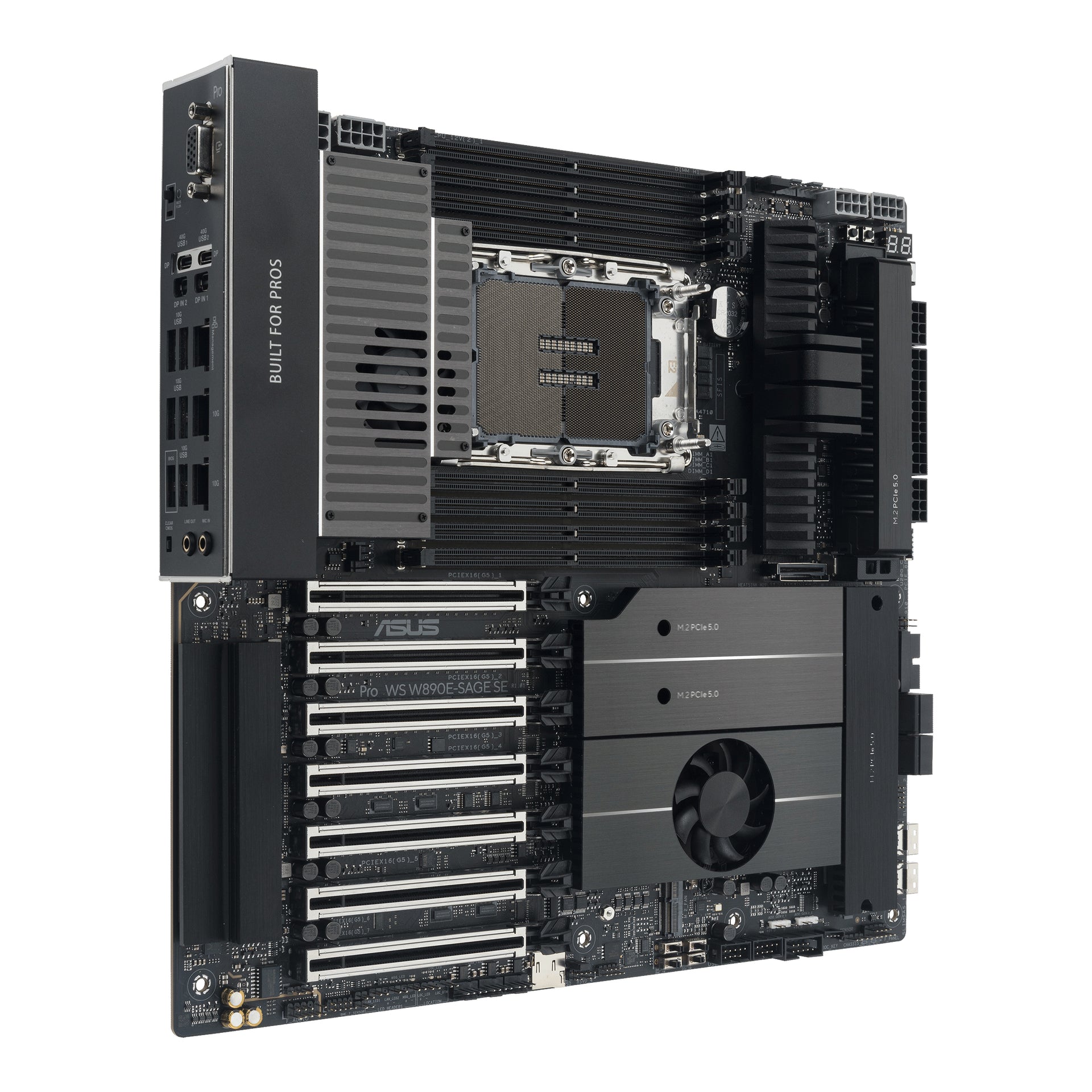

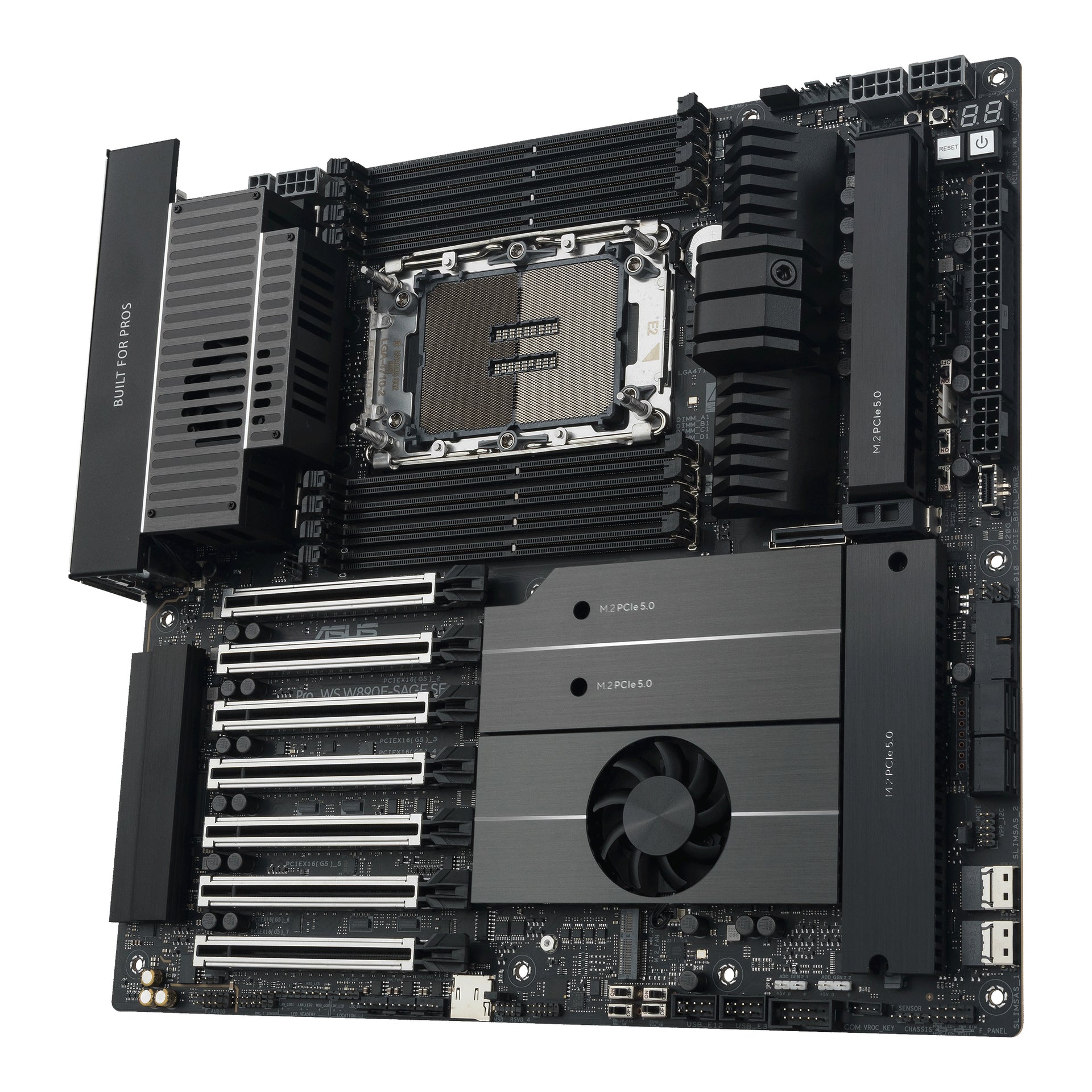

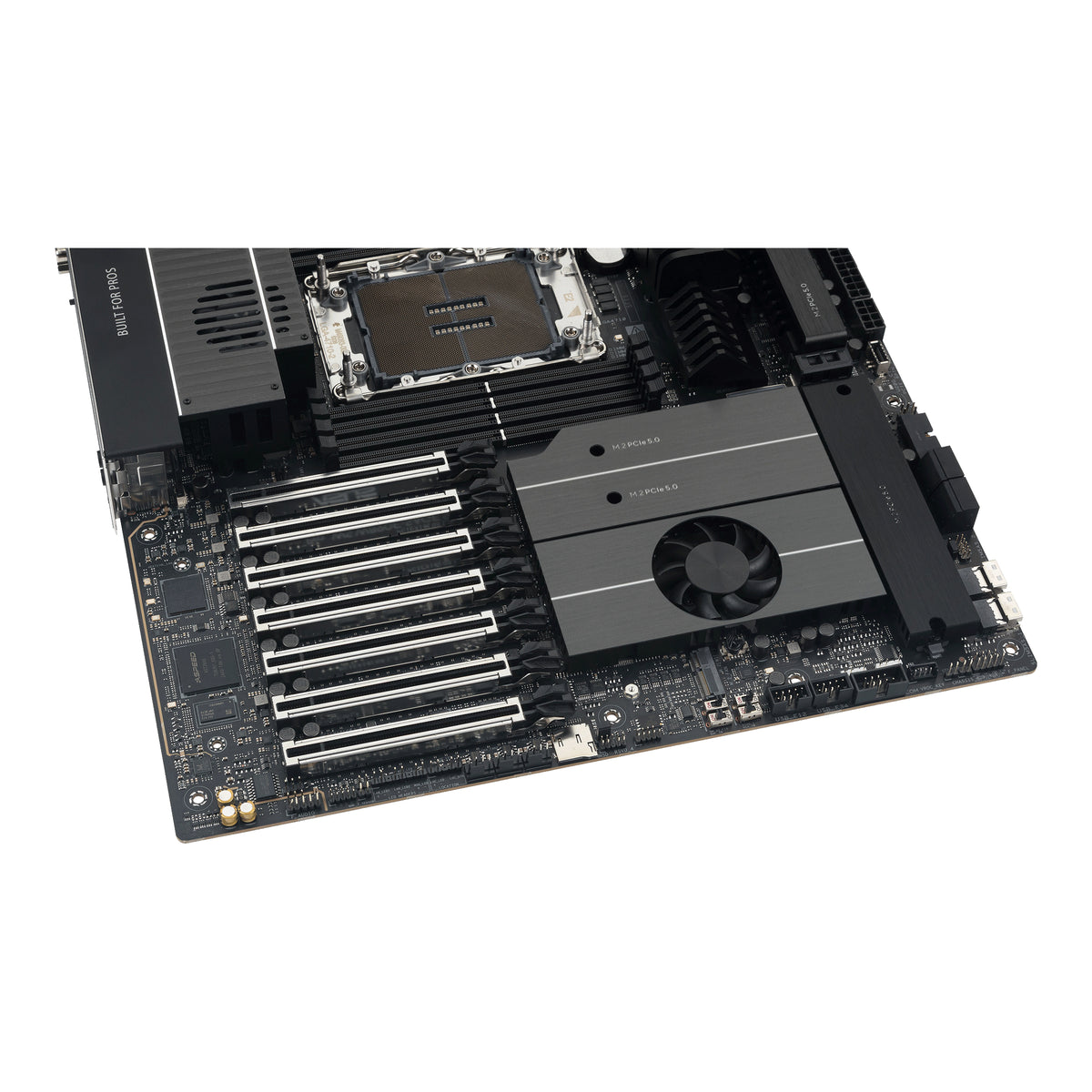

The ASUS 4710-2 PRO WS W890E-SAGE SE is designed for Intel Xeon processors, featuring an LGA 4710-2 socket and Intel W890 chipset, making it ideal for workstation builds. This motherboard is tailored for high-performance computing tasks, ensuring reliability and efficiency for demanding applications.

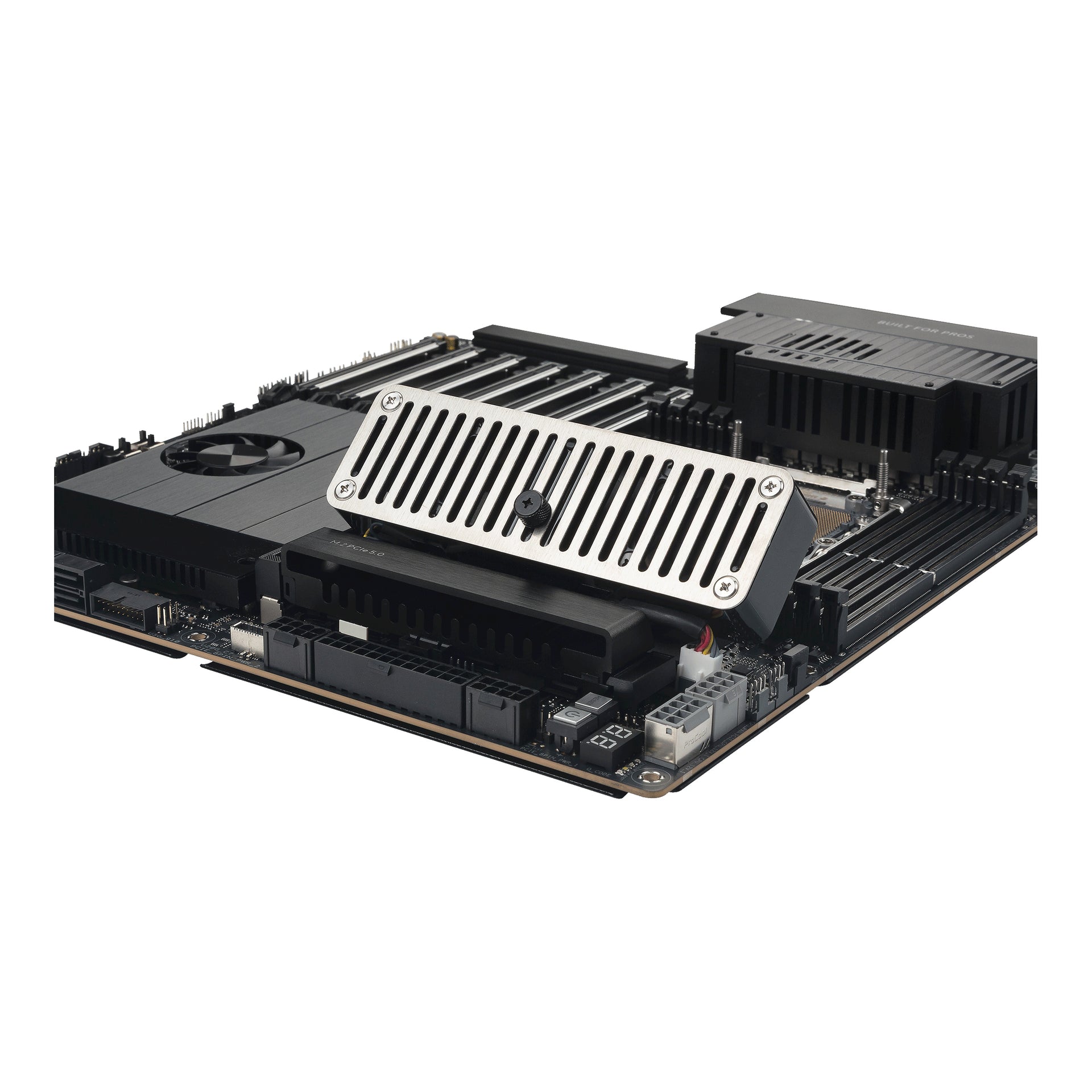

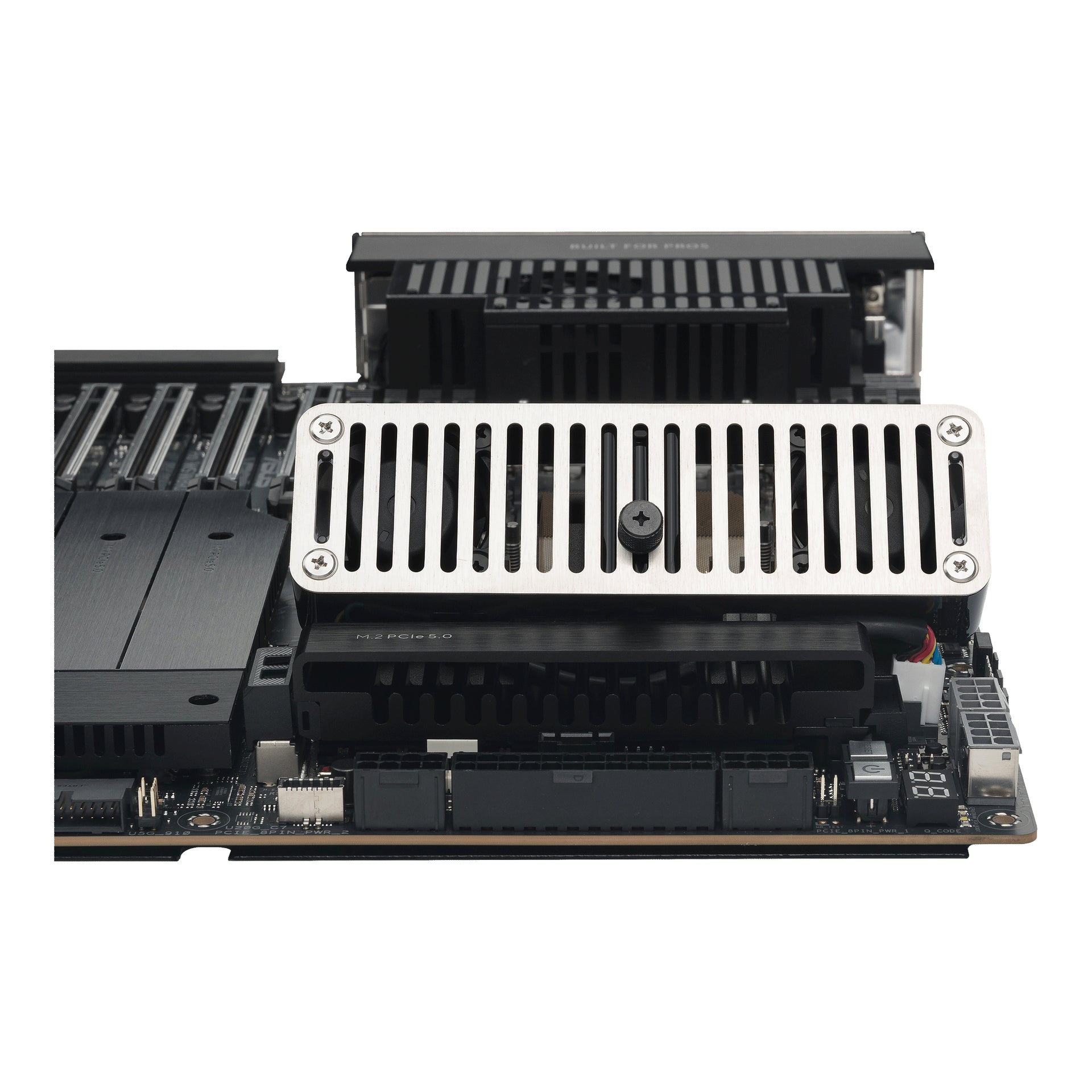

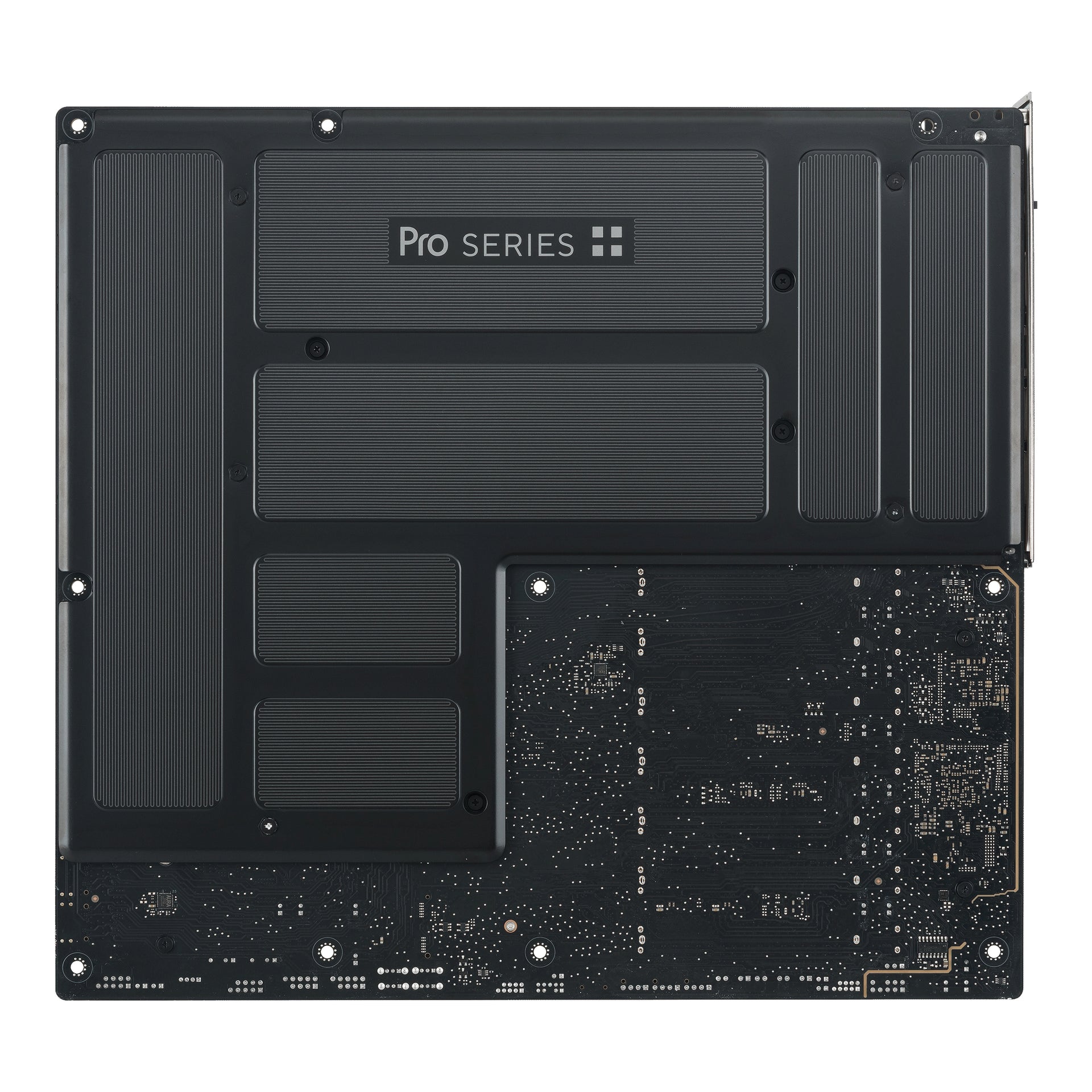

Constructed in the EEB form factor, the motherboard boasts a robust design with passive cooling, ensuring optimal thermal management. Its sleek black colour adds a professional touch, while the UEFI AMI BIOS provides a user-friendly interface for system configuration. The board is equipped with multiple power connectors, ensuring stable power delivery for sustained workloads.

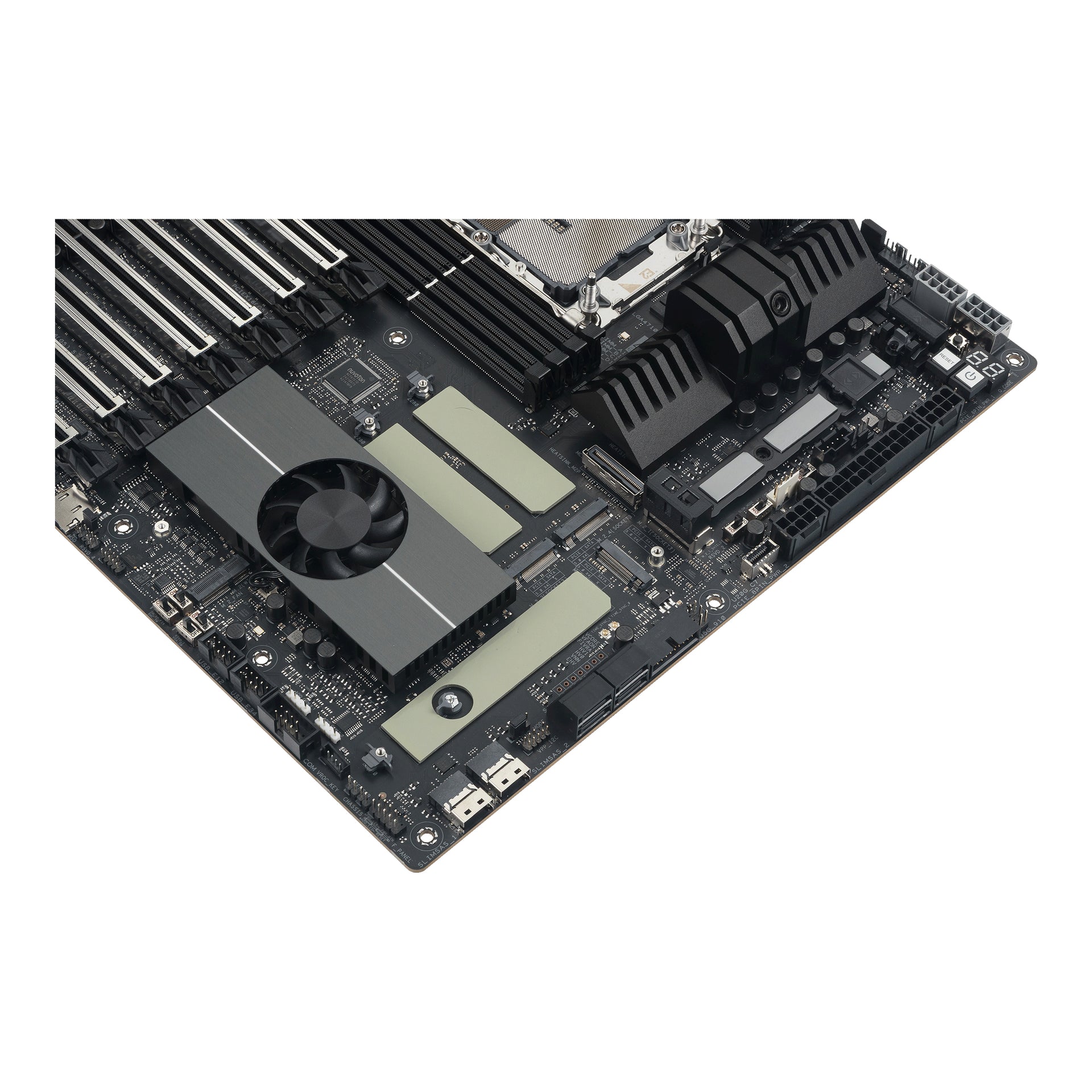

Supporting DDR5-SDRAM, the motherboard can accommodate up to 4 TB of memory across 8 DIMM slots, utilising an octa-channel configuration for enhanced performance. It offers extensive storage options with support for M.2, SATA III, and SlimSAS interfaces, allowing for a total of 10 storage drives. RAID support is also included, enabling configurations for data redundancy and performance.

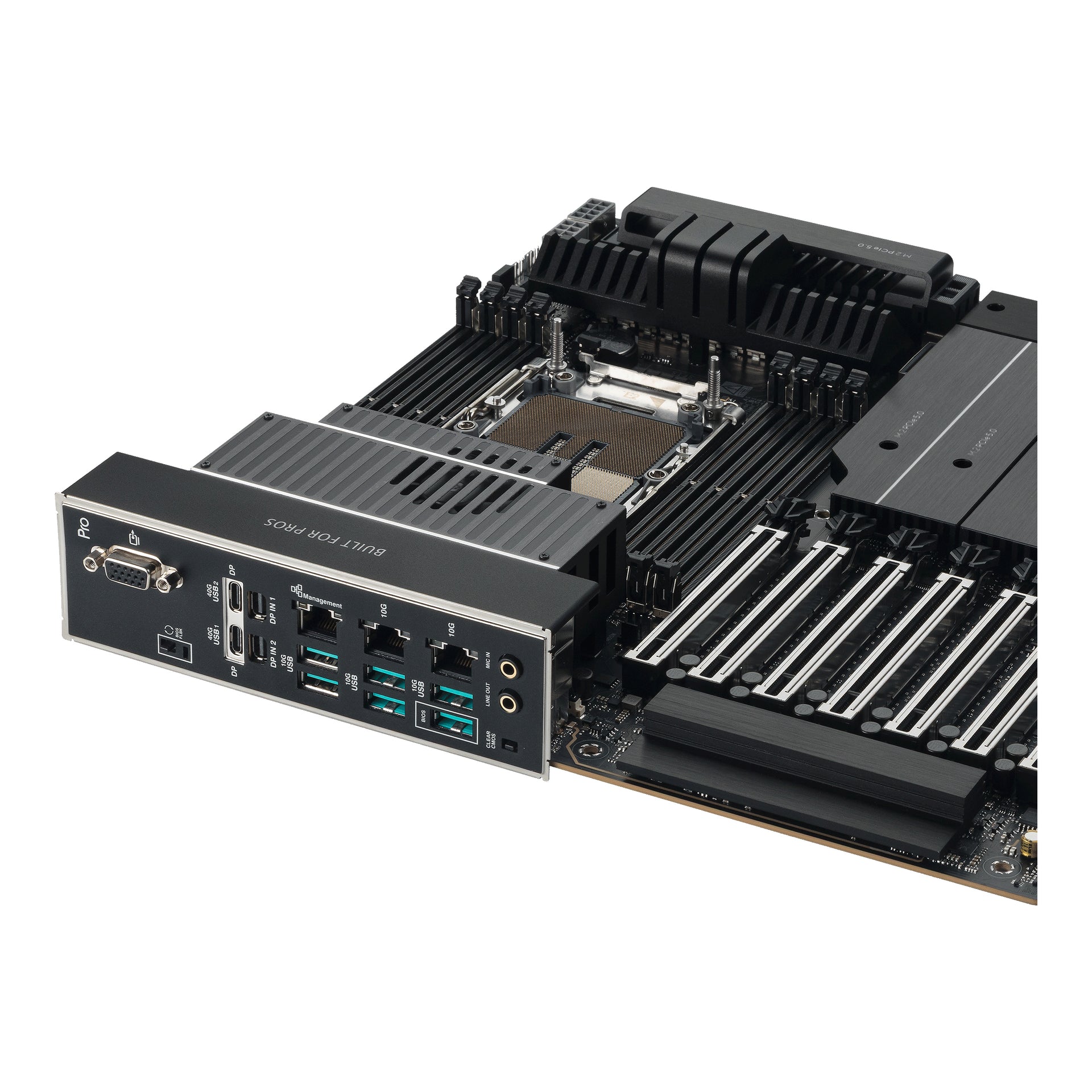

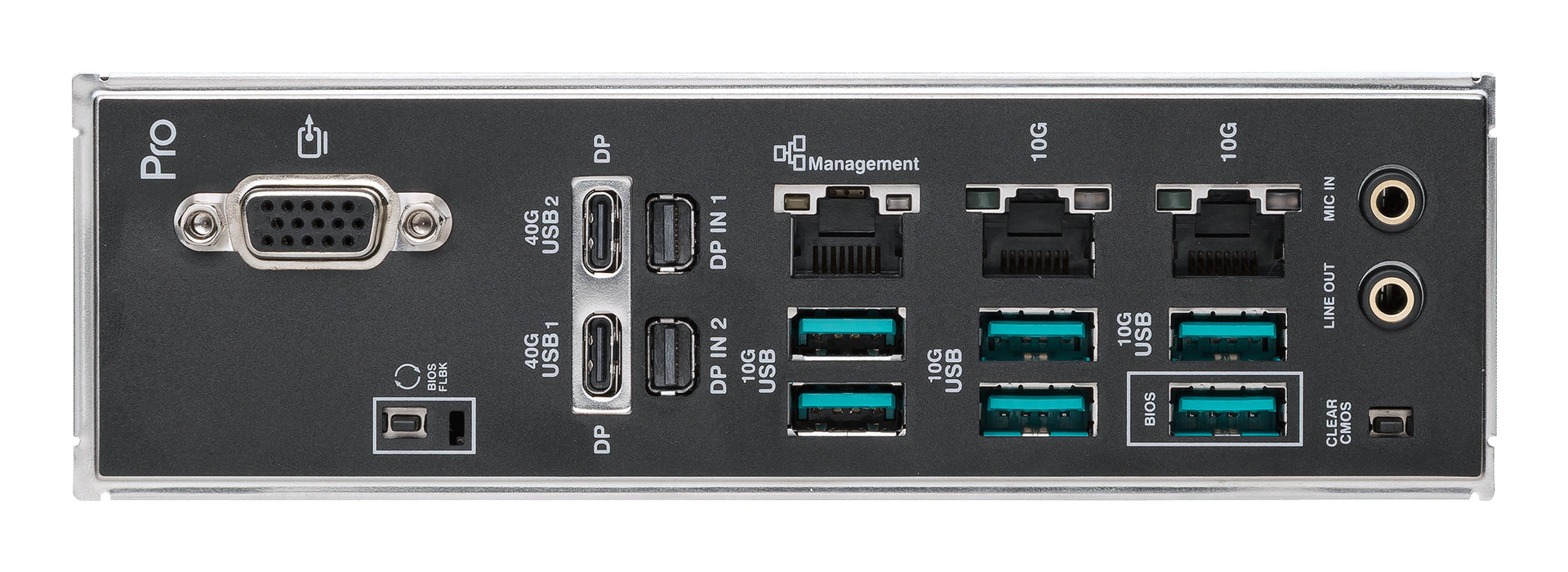

Connectivity options are plentiful, featuring 6 USB 3.2 Gen 2 Type-A ports, 2 USB4 Gen 3x2 ports, and multiple display outputs including Mini DisplayPort and VGA. The motherboard includes three Ethernet LAN ports for robust networking capabilities, along with an IPMI LAN port for remote management. The audio system is powered by the Realtek ALC1220P chip, delivering 7.1 channel audio output for immersive sound experiences.

This motherboard is well-suited for data-intensive workloads such as AI/ML, 3D rendering, and simulation tasks, making it an excellent choice for professionals in fields requiring high computational power. With its extensive PCIe expansion capacity, it can support various add-on cards, ensuring flexibility for future upgrades and enhancements.

Specifications
Processor & Chipset
Processor socket
LGA 4710-2
Supported processor sockets
LGA 4710-2
Processor manufacturer
Intel
Compatible processor series
Intel® Xeon®
Motherboard chipset
Intel W890
Motherboard chipset family
Intel
Form Factor & Design
Motherboard form factor
EEB
Product colour
Black
Cooling type
Passive
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
BIOS flashback button
Yes
Clear CMOS button
Yes
Memory
Supported memory types
DDR5-SDRAM
Maximum internal memory
4 TB
Number of memory slots
8
Memory slots type
DIMM
Memory channels
Octa-channel
Storage & Expansion
Supported storage drive interfaces
M.2, SATA III, SlimSAS
Supported storage drive types
HDD & SSD
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 5, 1, 10
Number of M.2 (M) slots
4
Number of M.2 (E) slots
1
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
4th M.2 highest PCI Express generation
5.0
4th M.2 largest key size
2280
PCI Express x16 (Gen 5.x) slots
7
PCI Express x16 (Gen 4.x) slots
1
Rear I/O & Connectivity
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB4 Gen 3x2 ports quantity
2
HDMI ports quantity
0
DisplayPort version
1.4
Mini DisplayPorts quantity
2
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
3
IPMI LAN (RJ-45) port
Yes
Headphone outputs
1
Line-in
Yes
Internal I/O
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
5
12V power connector
Yes
Number of SATA III connectors
4
Integrated SAS ports
2
Number of CPU fan connectors
1
Number of chassis fan connectors
5
Number of water pump connectors
1
Number of RGB LED pin headers
2
RGB LED pin header
Yes
Number of COM connectors
1
Number of temperature sensor headers
1
Chassis intrusion connector
Yes
Front panel connector
Yes
Front panel audio connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2x2 connectors
1
Networking
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi
No
Top Wi-Fi standard
Not available
Audio
Audio chip
Realtek ALC1220P
Audio output channels
7.1 channels
Graphics & Multi-GPU
Maximum resolution
7680 x 4320 pixels
Parallel processing technology support
Not supported
Weight & Dimensions
Weight
3.4 kg
Height
50 mm
Width
305 mm
Depth
330 mm
Package weight
3.7 kg
Package height
103 mm
Package width
362 mm
Package depth
377 mm
