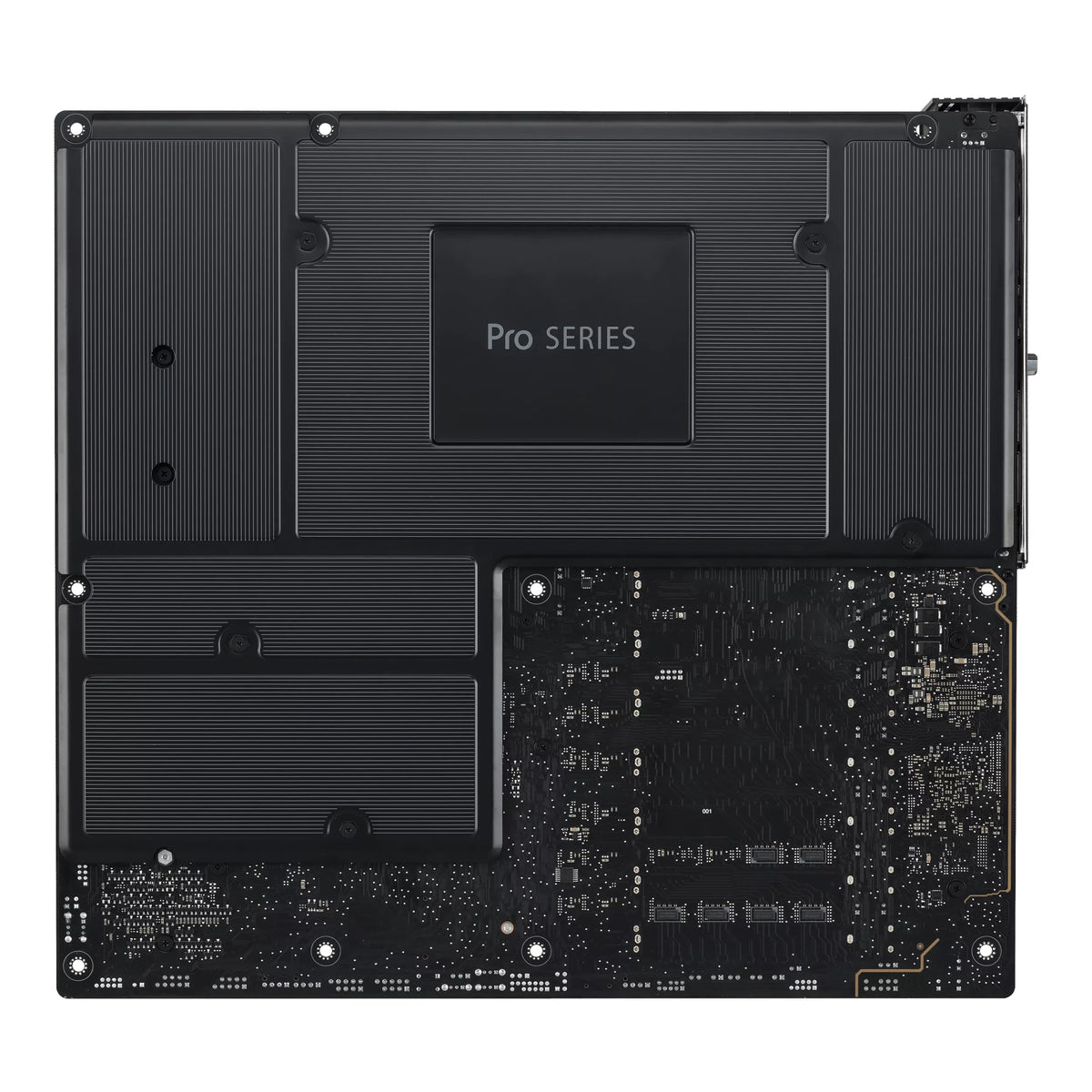

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 EEB

In Stock

Key information

Socket: Socket sTR5
Chipset: AMD WRX90
Form Factor: EEB
Memory Support: DDR5-SDRAM
Memory Slots: 8
Storage: M.2, SATA III, SlimSAS
PCIe Slots: 7
£1,187.42(inc. VAT) £989.51(exc. VAT)
Order within for next business day delivery

Business Finance Options

30 Day Credit
Quantity

Payment & Security

American Express Apple Pay Google Pay Klarna Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store card details nor do we have access to your card information.

Next day delivery available on selected products
Secure checkout
  • Product overview
  • Specifications
  • Reviews
Product overview

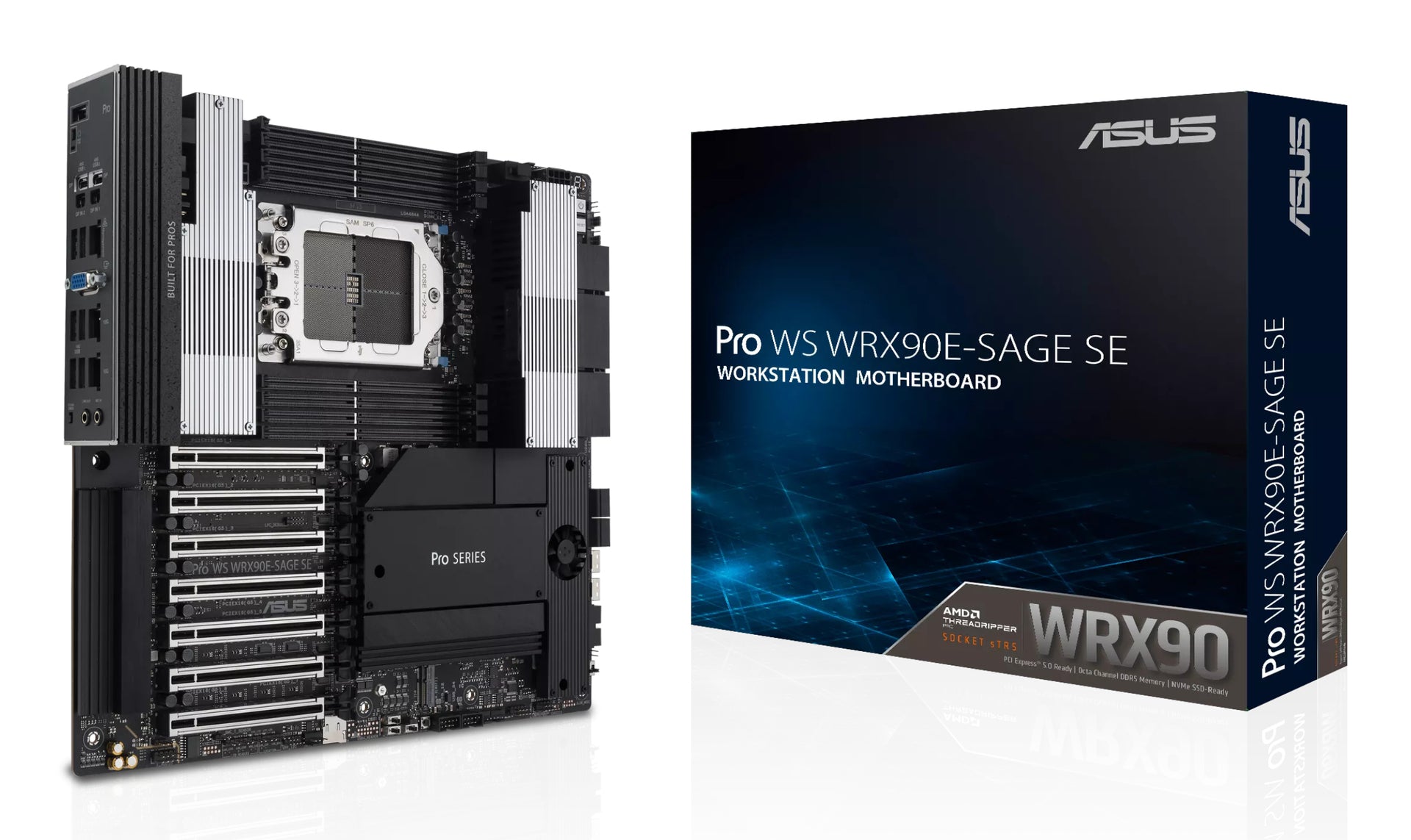

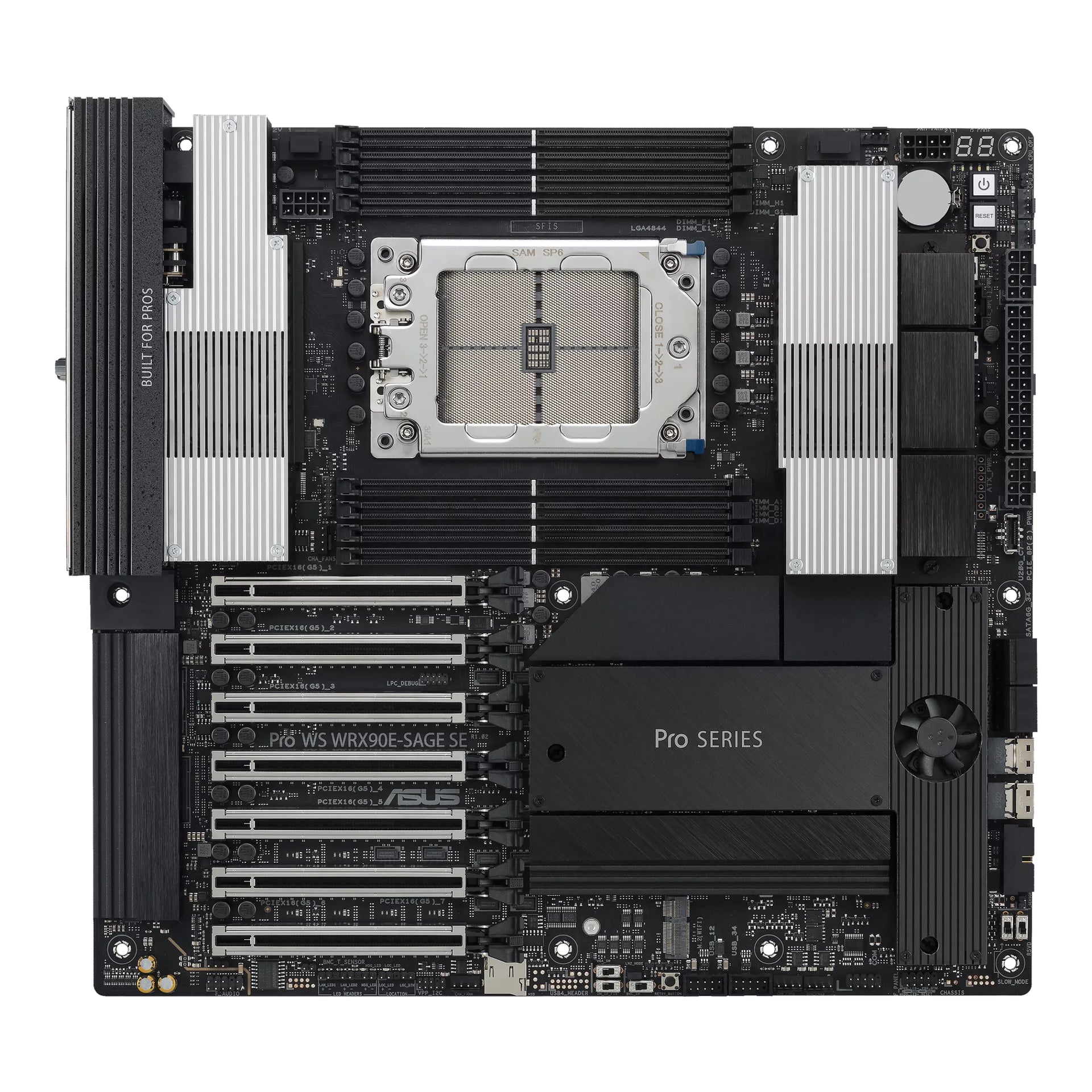

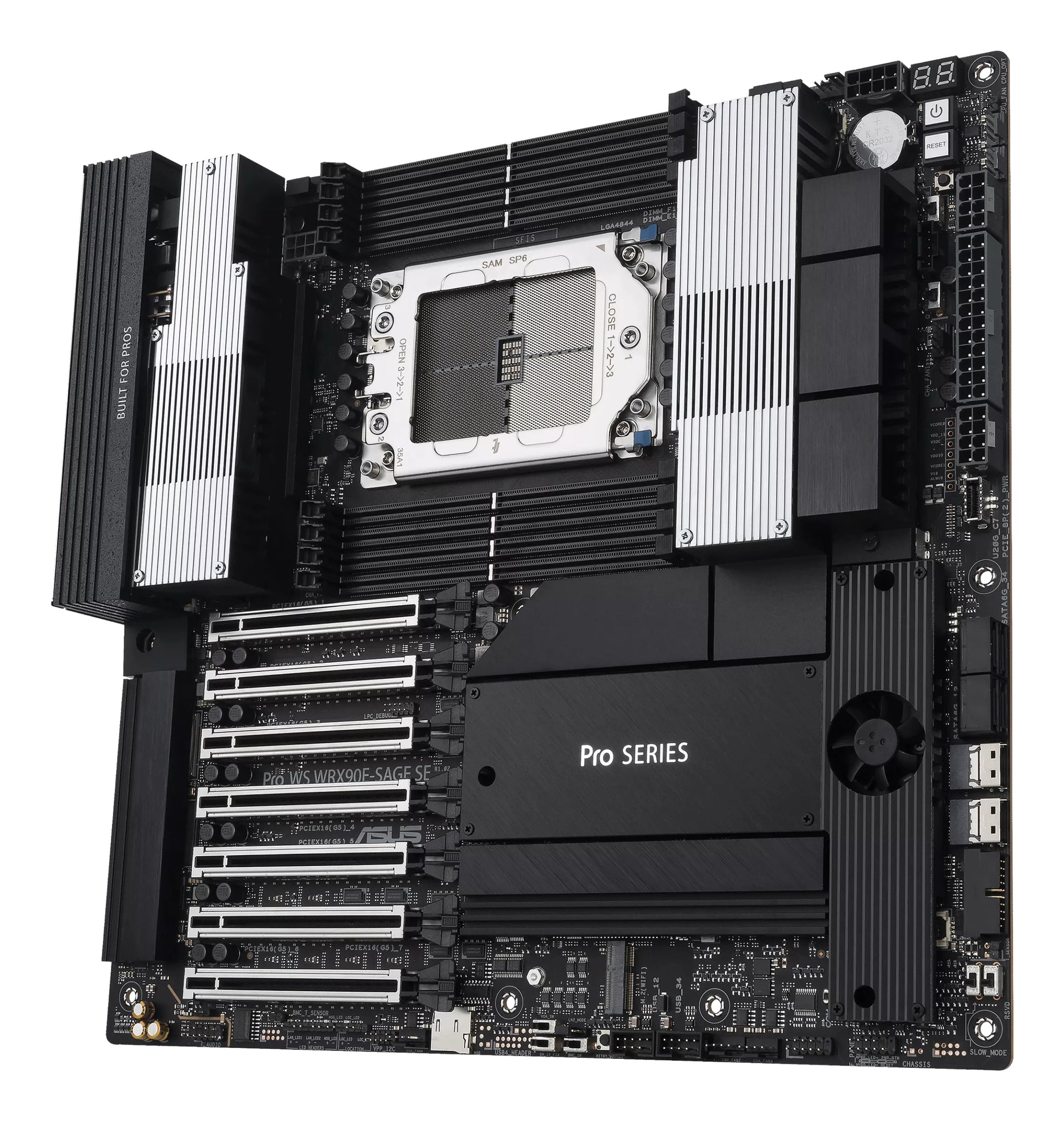

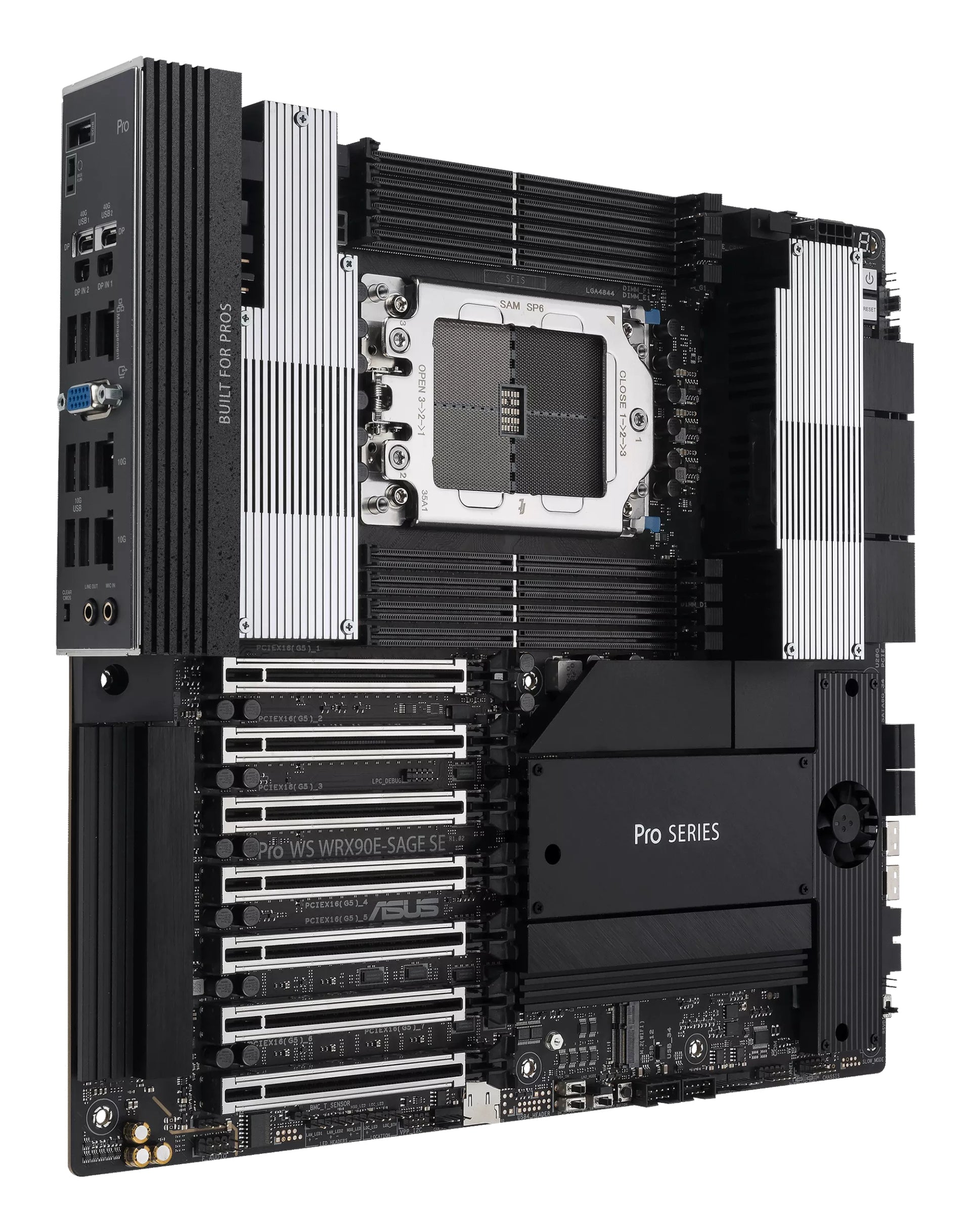

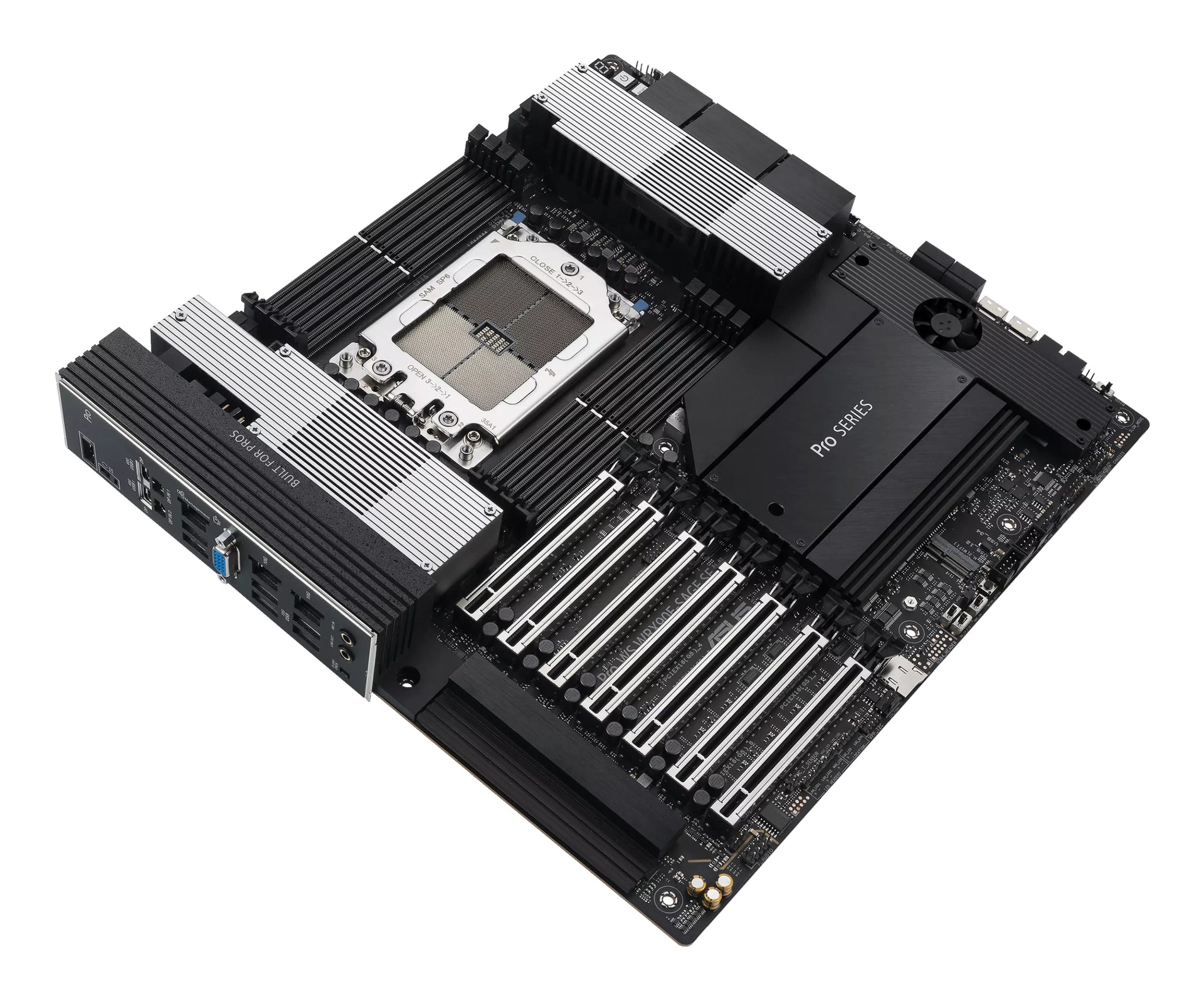

The ASUS STR5 PRO WS WRX90E-SAGE SE is designed for high-performance workstation builds, featuring the Socket sTR5 and AMD WRX90 chipset. This motherboard is compatible with the AMD Ryzen Threadripper PRO 7000 WX-Series processors, making it an excellent choice for demanding applications that require robust processing power.

Constructed in an EEB form factor, this motherboard boasts a solid aluminium and black design, ensuring durability and reliability. The cooling type is efficient, allowing for optimal thermal management during intensive tasks. The physical build quality is reinforced to support heavy workloads, making it suitable for professional environments.

With support for DDR5-SDRAM memory, the ASUS STR5 PRO WS WRX90E-SAGE SE can accommodate up to 2 TB of RAM across 8 DIMM slots, operating in octa-channel mode. This configuration provides ample memory bandwidth for data-intensive applications. Additionally, it supports various storage options, including M.2, SATA III, and SlimSAS interfaces, with a total of 10 drives supported and RAID capabilities for enhanced data protection.

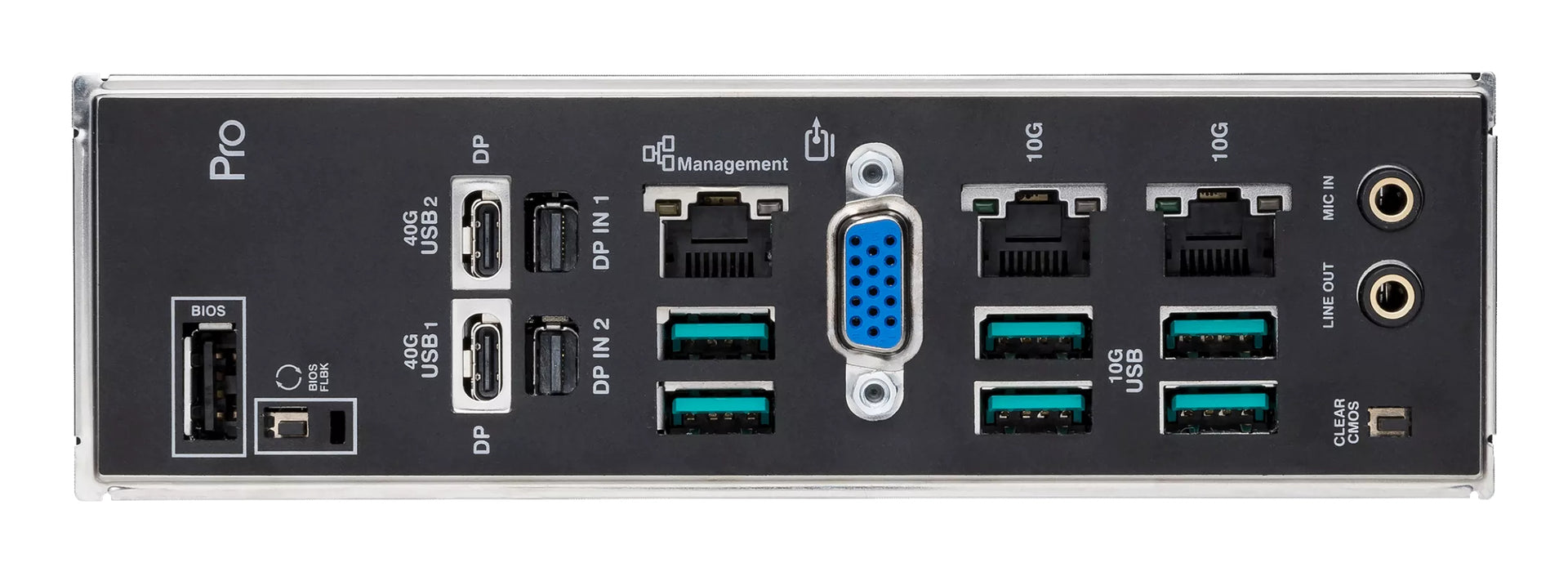

On the rear I/O, the motherboard is equipped with multiple USB ports, including 6 USB 3.2 Gen 2 Type-A ports and 2 USB4 Gen 3x2 ports, ensuring versatile connectivity. It also features 2 Mini DisplayPorts and 1 VGA port for video output, along with dual Ethernet LAN ports for high-speed networking. The audio capabilities are powered by the Realtek ALC1220P chip, providing high-quality sound output.

This motherboard is ideal for professionals engaged in AI/ML, 3D rendering, simulation, and other data-intensive workloads. Its extensive PCIe expansion capacity, combined with high memory and storage support, makes it a powerful solution for users who require reliability and performance in their computing tasks.

Specifications
Processor & Chipset
Processor socket
Socket sTR5
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen Threadripper PRO 7000 WX-Series
Motherboard chipset
AMD WRX90
Motherboard chipset family
AMD
Form Factor & Design
Motherboard form factor
EEB
Product colour
Aluminium, Black
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Memory
Supported memory types
DDR5-SDRAM
Maximum internal memory
2 TB
Number of memory slots
8
Memory slots type
DIMM
Memory channels
Octa-channel
Storage & Expansion
Supported storage drive interfaces
M.2, SATA III, SlimSAS
Supported storage drive types
HDD & SSD
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 1, 5, 10
Number of M.2 (M) slots
4
PCI Express x16 (Gen 5.x) slots
7
Rear I/O & Connectivity
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB4 Gen 3x2 ports quantity
2
HDMI ports quantity
0
Mini DisplayPorts quantity
2
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
2
Internal I/O
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
5
Number of COM connectors
1
Chassis intrusion connector
Yes
Front panel audio connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2x2 connectors
1
Networking
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi
No
Top Wi-Fi standard
Not available
Audio
Audio chip
Realtek ALC1220P
Weight & Dimensions
Weight
3.33 kg
Height
50 mm
Width
305 mm
Depth
330 mm
Package weight
3.62 kg
Package height
79 mm
Package width
377 mm
Package depth
362 mm
