FSP 2500W 80 PLUS Platinum

In Stock

Key information

Wattage: 2500W
Efficiency Rating: 80 PLUS Platinum
Modular: Fully-Modular
Form Factor: ATX
Fan Size: 135mm
Connectors: 8x PCIe 8-pin, 3x PCIe 6+2 pin, 8x SATA, 4x MOLEX
£464.56(inc. VAT) £387.13(exc. VAT)
Order within for next business day delivery

Business Finance Options

30 Day Credit
Quantity

Payment & Security

American Express Apple Pay Google Pay Klarna Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store card details nor do we have access to your card information.

Next day delivery available on selected products
Secure checkout
  • Product overview
  • Specifications
  • Reviews
Product overview

The FSP 2500W 80 PLUS Platinum power supply unit is designed for high-end gaming and professional workstation builds that demand substantial power. With its impressive wattage and ATX form factor, it provides the necessary energy for powerful components and multiple graphics cards, ensuring stability and performance during intense usage.

The 80 PLUS Platinum certification indicates that this PSU operates with an efficiency of 94%, which translates to lower electricity costs and reduced heat output. This high efficiency also contributes to voltage stability, ensuring that your components receive consistent power. The PSU includes various protection circuits such as over current, over power, over voltage, short circuit, surge and inrush, under temperature, and under voltage, safeguarding your system against potential damage.

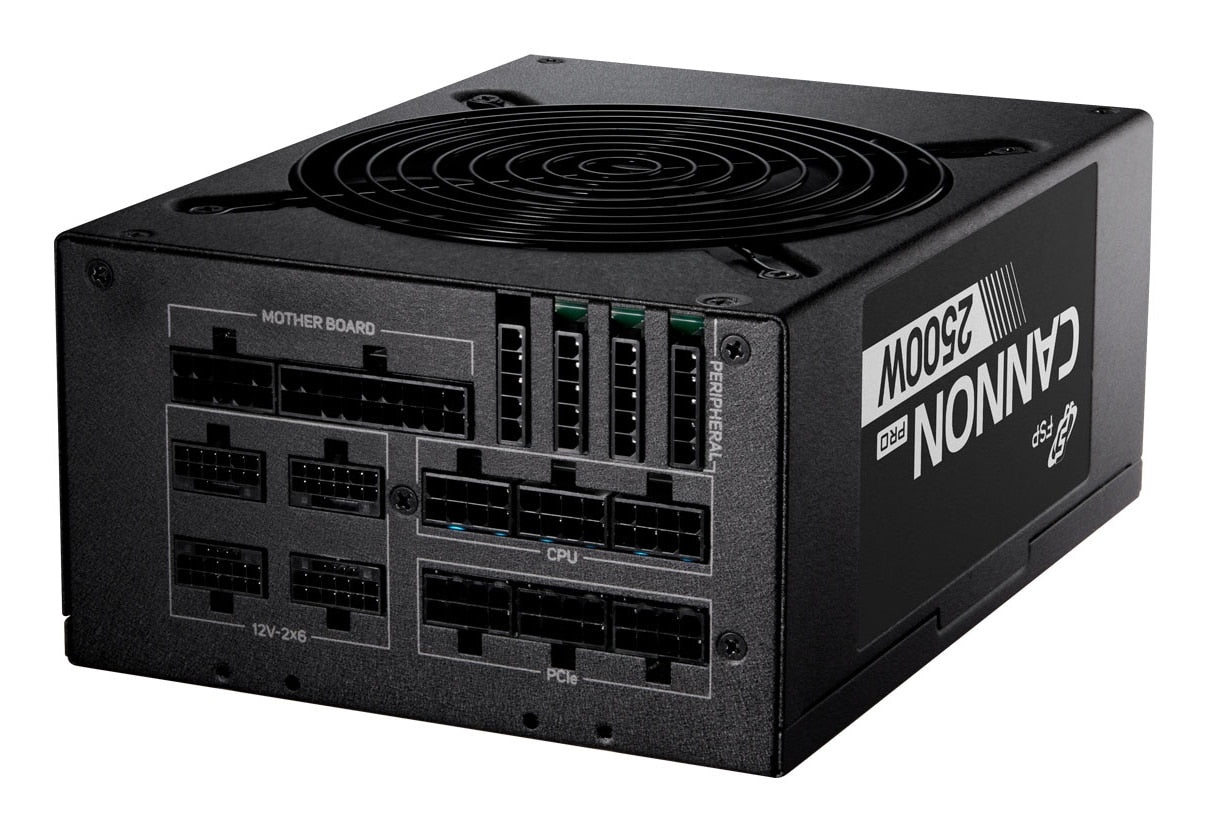

This unit features a fully-modular cabling system, allowing for optimal cable management. This design not only helps reduce clutter within your case but also improves airflow, contributing to better cooling performance. Users can connect only the cables they need, which simplifies installation and enhances the overall aesthetic of the build.

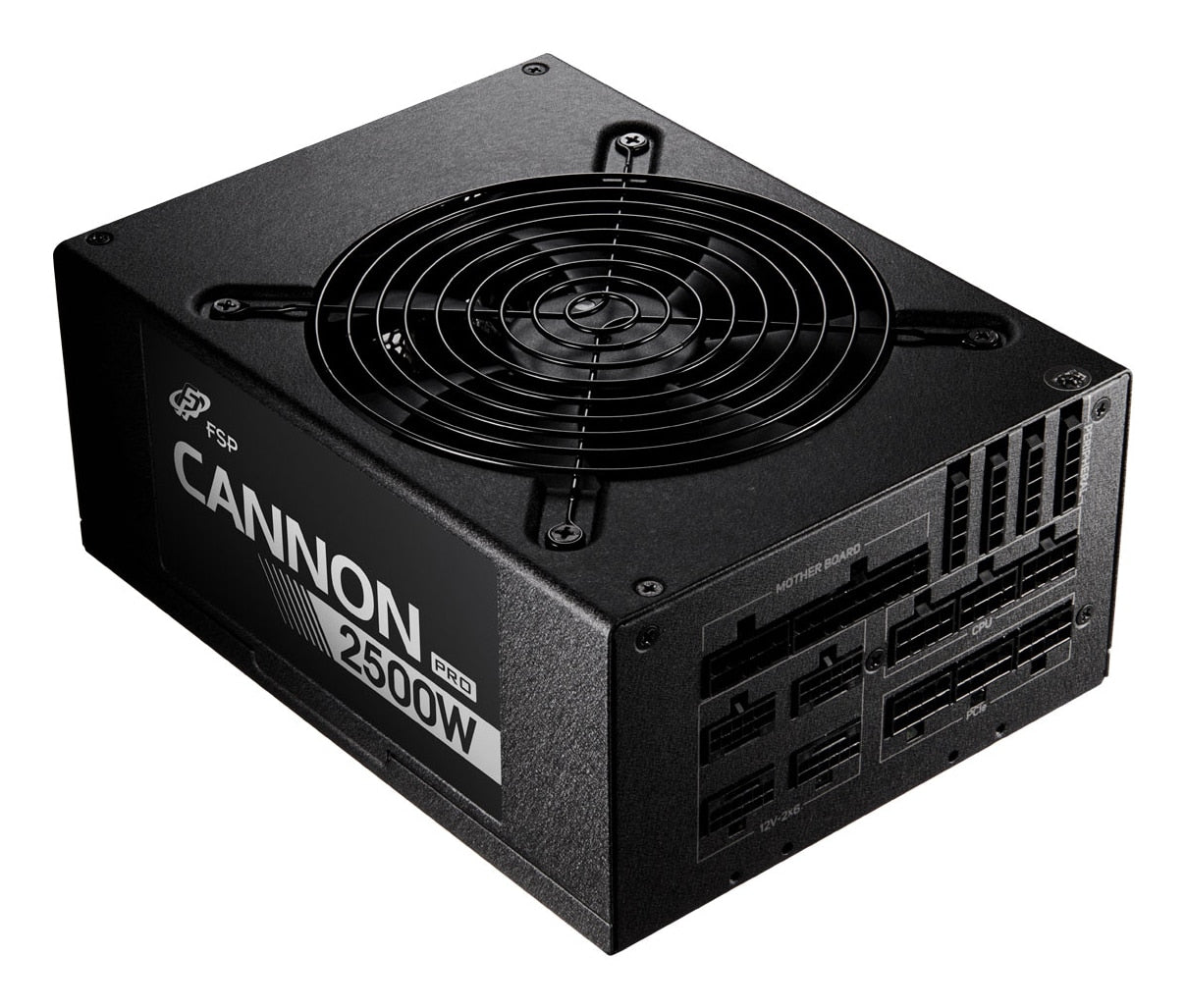

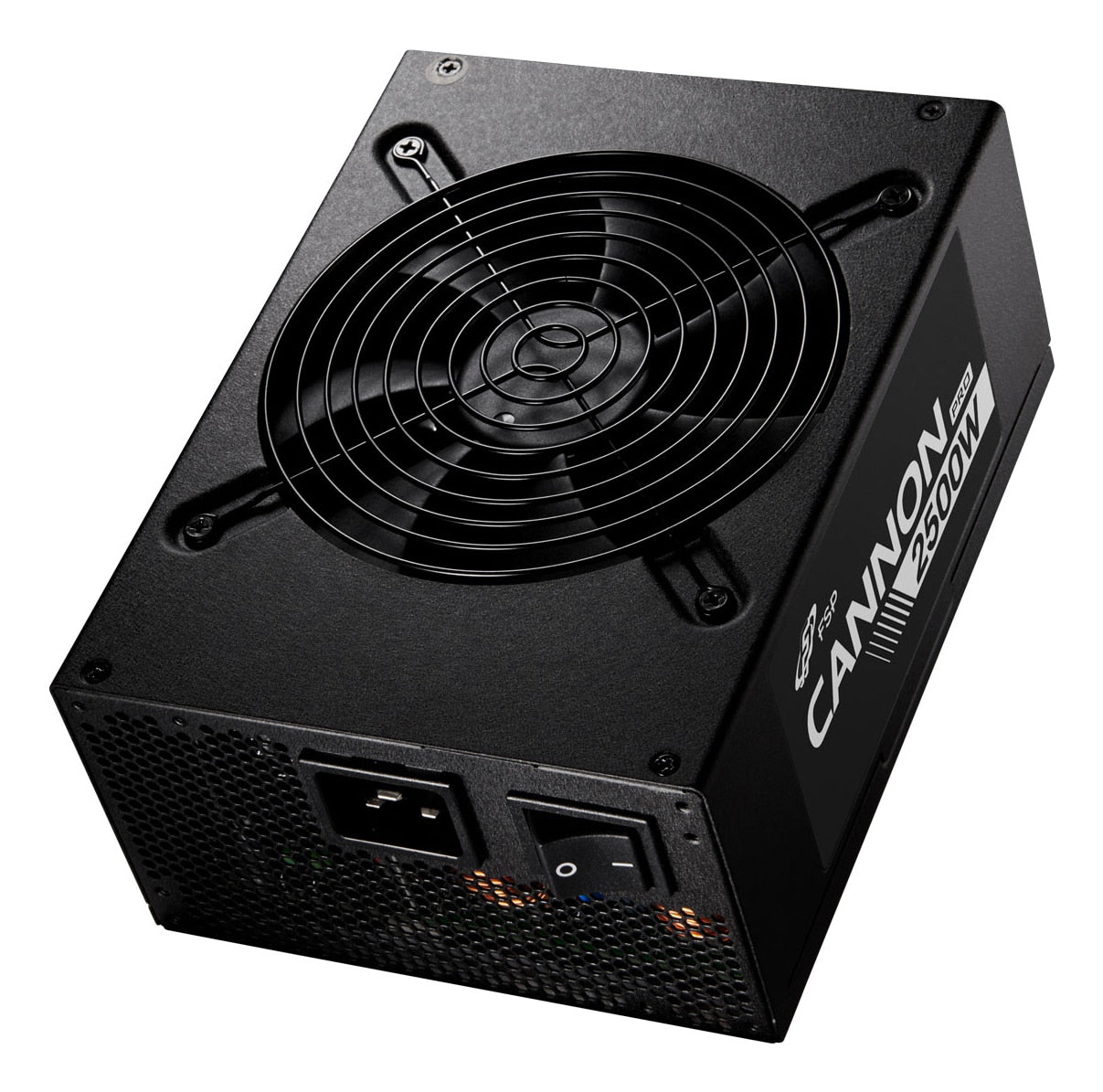

Equipped with a 135mm fan that employs FDB bearing technology, this PSU operates quietly while efficiently dissipating heat. The fan is strategically located at the top of the unit to maximise airflow within the case. The PSU does not feature a zero RPM mode, but its design ensures that it remains relatively quiet under normal operating conditions.

This power supply is ideal for users looking to build a high-performance gaming rig or a professional workstation that requires significant power. Its robust specifications and high efficiency make it suitable for future-proofing against high-power GPUs and demanding applications.

Specifications
Power Output
Total Power
2500 W
Combined Power (+3.3V)
125 W
Combined Power (+12V)
2499.6 W
Combined Power (+5V)
125 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
20 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V)
208.3 A
Max Output Current (+5V)
25 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
4 A
Efficiency & Certification
Efficiency
94%
Power Factor
0.9
80 PLUS Certification
80 PLUS Platinum
Modularity & Form Factor
Cabling Type
Fully-Modular
Form Factor
ATX
ATX Version
3.1
Cooling & Noise
Number of Fans
1 fan(s)
Fan Location
Top
Fan Bearing Technology
FDB
Fan Diameter
135 mm
Protections
Power Protection Features
No load operation, Over current, Over power, Over voltage, Short circuit, Surge and inrush, Under temperature, Under voltage
Connectors
Motherboard Power Connector
20+4 pin ATX
CPU Power Connector
Yes
SATA Power Connectors
8
PCI Express Power Connectors
8
Peripheral (Molex) Power Connectors
4
Number of SATA Power Cables
2
PCI Express Power Connectors (6+2 pin)
3
Physical & Dimensions
Width
150 mm
Depth
200 mm
Height
86 mm
