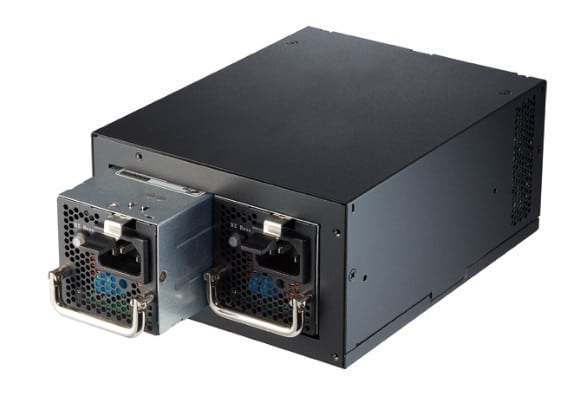

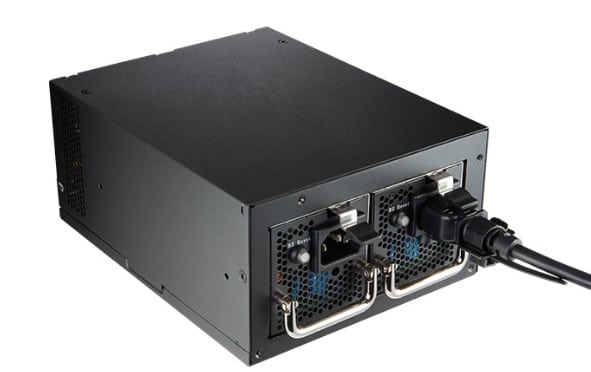

FSP 700W GOLD REDUNDANT TWINS PRO

In Stock

Key information

Wattage: 700W
Efficiency Rating: 80 PLUS Gold
Modular: Non-Modular
Form Factor: PS/2
Fan Size: 4cm
Connectors: 2x 4-pin Molex, 6x SATA, 4x 6+2 pin PCIe, 20+4 pin ATX, 4+4 pin CPU
£379.49(inc. VAT) £316.24(exc. VAT)
Order within for next business day delivery

Business Finance Options

30 Day Credit
Quantity

Payment & Security

American Express Apple Pay Google Pay Klarna Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store card details nor do we have access to your card information.

Next day delivery available on selected products
Secure checkout
  • Product overview
  • Specifications
  • Reviews
Product overview

The FSP 700W GOLD REDUNDANT TWINS PRO is designed for server applications, providing a robust power solution with a total output of 700W and an 80 PLUS Gold efficiency rating. This makes it suitable for high-demand environments where reliability and efficiency are paramount.

The 80 PLUS Gold certification indicates that this power supply operates at an efficiency of up to 90%, meaning less energy is wasted as heat. This translates to lower electricity costs and improved voltage stability, ensuring your system remains powered without fluctuations. Additionally, it features multiple protection circuits including over current, over power, over voltage, overheating, short circuit, and under voltage protections to safeguard your components.

This unit is non-modular, which means all cables are fixed. While this may limit some aspects of cable management, it ensures that all necessary connections are readily available for installation. Users may find it beneficial to plan their cable routing ahead of time to maintain a clean build.

Equipped with two 4 cm fans and ball bearing technology, the cooling system is designed to maintain optimal temperatures even under heavy loads. The fans help to dissipate heat effectively, contributing to the overall longevity of the power supply.

This power supply is ideal for server builds where consistent power delivery is critical. Its robust features and high efficiency make it a suitable choice for professionals seeking reliable performance in demanding environments.

Specifications
Power Output
Total Power
700 W
Combined Power (+3.3V)
130 W
Combined Power (+5V)
130 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
58.3 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.5 A
Max Output Current (+5Vsb)
3 A
Efficiency & Certification
Efficiency
90%
80 PLUS Certification
80 PLUS Gold
Modularity & Form Factor
Modular Type
Non-Modular
Form Factor
PS/2
Cooling & Noise
Number of Fans
2 fan(s)
Fan Bearing Technology
Ball bearing
Fan Diameter
4 cm
Protections
Over Voltage Protection
Yes
Over Current Protection
Yes
Short Circuit Protection
Yes
Over Temperature Protection
Yes
Over Power Protection
Yes
Under Voltage Protection
Yes
Connectors
Motherboard Power Connector
20+4 pin ATX
CPU Power Connector
4+4 pin
PCI Express Power Connectors
4
SATA Power Connectors
6
Peripheral (Molex) Power Connectors
2
Physical & Dimensions
Width
150 mm
Depth
190 mm
Height
86 mm
AC Input Voltage
100 – 240 V
AC Input Frequency
50 – 60 Hz
Input Current
10-5 A
Power Factor Correction (PFC) Type
Active
