TP-Link OC200 Omada Cloud Controller
- Product overview
- Specifications
The TP-Link OC200 v1.1 is an Omada Cloud Controller designed for centralised network management. It provides L3 management capabilities with web-based configuration and monitoring.
The device features a built-in processor running at 1000 MHz with 1GB DDR3 internal memory and 4000 MB flash storage. It supports Ethernet LAN data rates of 10 and 100 Mbit/s and complies with IEEE 802.3af and IEEE 802.3at standards.
Security features include MAC address filtering, VLAN support and SSID, WEP, WPA, WPA-PSK, WPA2 and WPA2-PSK encryption.

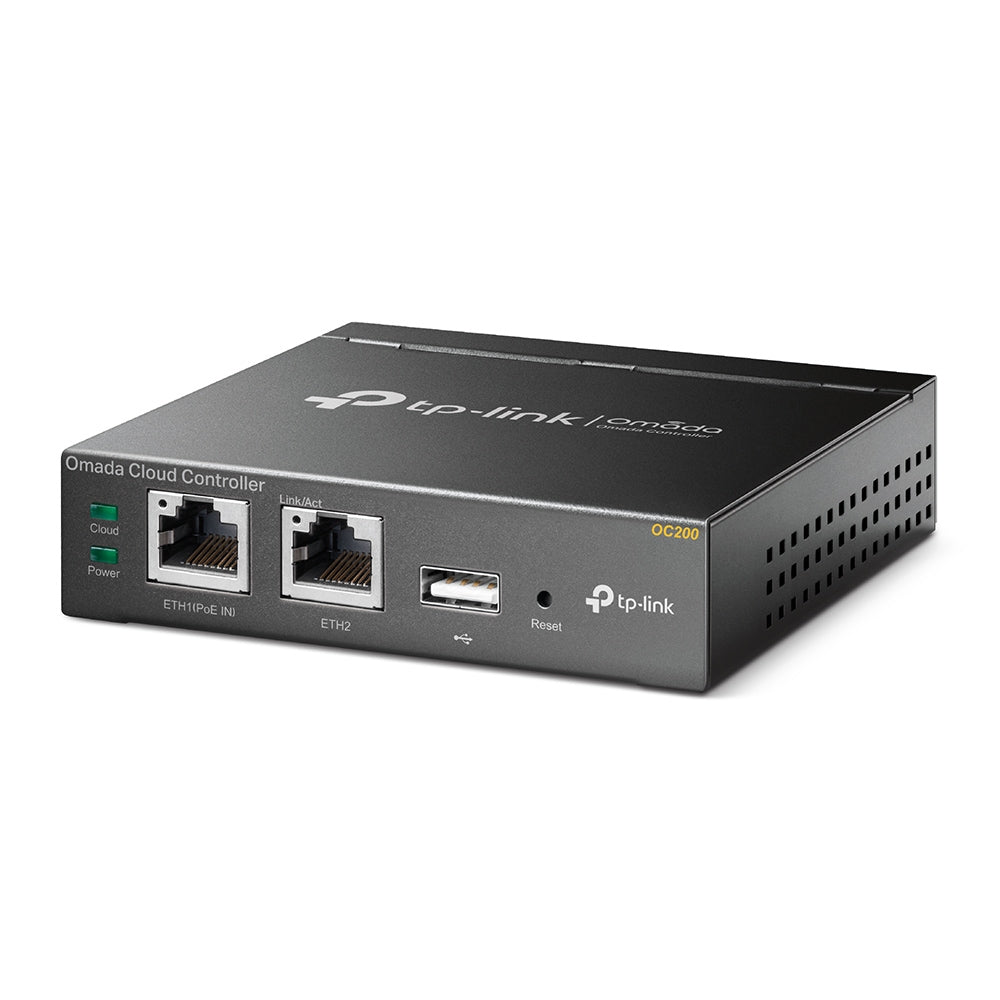

Connectivity includes two RJ-45 Ethernet ports and one USB 2.0 port. The controller supports Power over Ethernet (PoE) and 5V DC input (5V, 1A). Typical power consumption is 5W.
Compatible operating systems include Windows (10, 8, 7, Vista, XP), macOS, NetWare, UNIX and Linux.

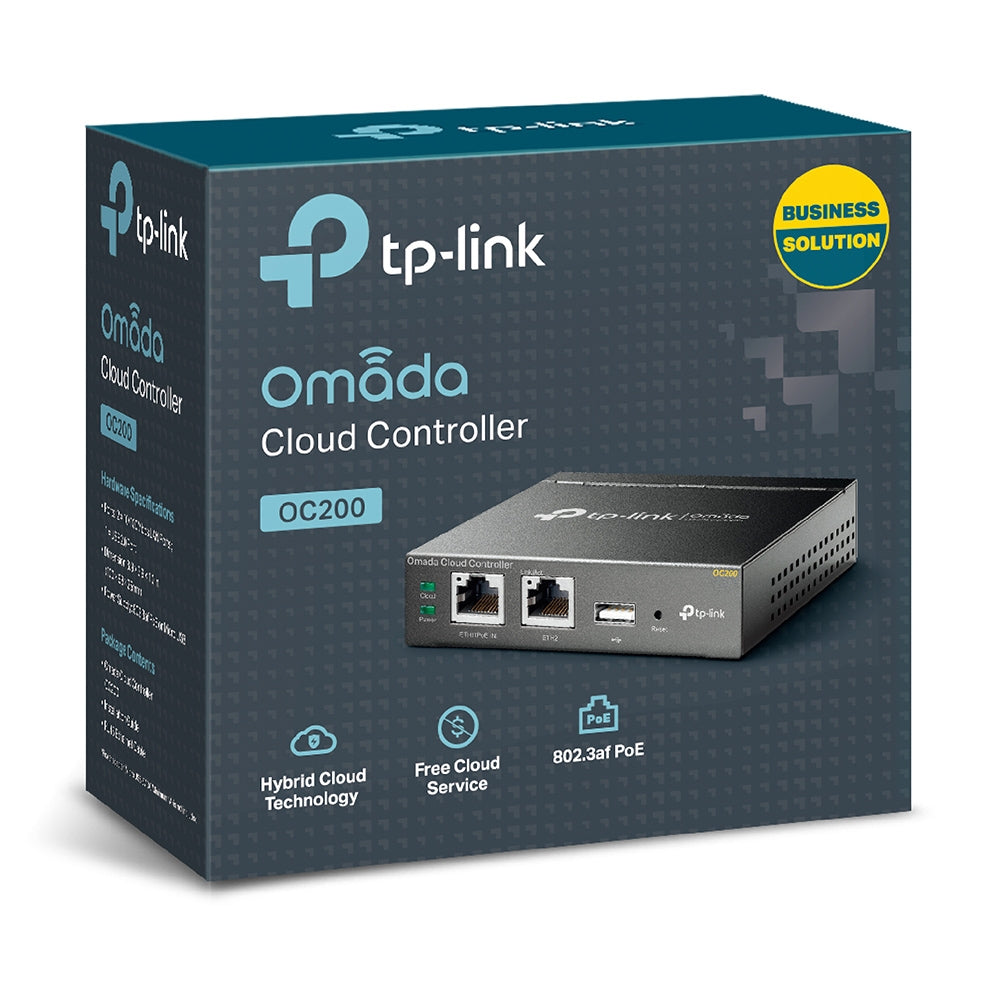

The compact black enclosure measures 99.8 x 98 x 25 mm. The package includes an RJ-45 LAN cable and quick installation guide.
Operating temperature range is 0 to 40°C.
